You can access the menu by pressing the OK button.
Use the Up and Down arrows to navigate through the menu and press the OK button to enter a submenu or change a setting.
When editing a setting, the Up and Down buttons will let you scroll through the available options for that setting and the OK button will confirm your selection.
Use the Back button to exit a setting.

You can use this menu to configure the digital input/output settings.

Illustration of a VBOX Omega displaying the main menu with Digital I/O highlighted.

You can use this menu to configure the digital input/output settings.

Digital Input #

Defines what the digital input will be used for; either an event marker or as a track marker.

Event Marker #

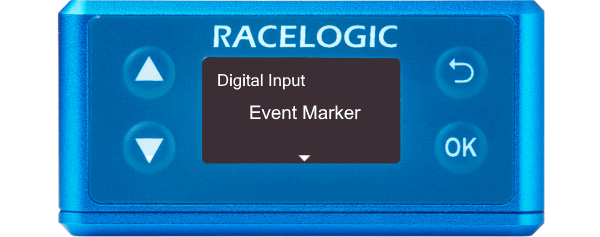

Enabling this mode allows the Digital Input to be used with an event marker which allows you to record marker events within the data file.

Track Marker #

Enabling this mode allows the Digital Input to be used as a track marker.

You can use an input switch to:

Illustration of a VBOX Omega showing the Digital Input screen with Track Marker selected.

Enabling this mode allows the Digital Input to be used as a track marker.

You can use an input switch to:

You can use the Digital Input to program the position of virtual lines in VBOX Omega, to set Start/Finish and Split lines. You must first make sure that you have a connection to the Digital Input (pin 13). This pin should be connected to one side of a momentary switch and the other side of the switch should be connected to the Ground pin (pin 14) on VBOX Omega. This means that when the switch is pressed, the Digital Input pin will be shorted to ground. You can also use the Digital Input for an Event Marker.

Digital Output #

Defines the digital output of VBOX Omega.

Speed #

Sends a configured number of pulses per metre.

Lap Pulse #

When the Start/Finish line is crossed, the Lap Pulse signal switches polarity for 1 second (default). Signal polarity and pulse duration can be configured in VBOX Setup Software.
