You can access the menu by pressing the OK button. Use the Up and Down arrows to navigate through the menu and press the OK button to enter a submenu or change a setting. When you edit a setting, the Up and Down buttons will let you scroll through the available options for that setting and the OK button will confirm your selection. Use the Back button to exit a setting.

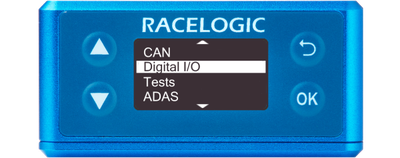

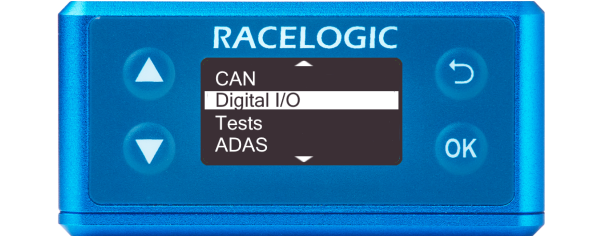

You can use this menu to configure the digital input/output settings.
You can use this menu to configure the digital input/output settings.
Defines what the digital input will be used for, either a brake trigger or as a track marker.
Enabling this mode allows the Digital Input to be used with a brake trigger. Activation of the trigger will start the brake stop distance measurement, where VBOX 3iS will calculate a Time and Distance for a Brake Trigger to 0 km/h test.
Enabling this mode allows the Digital Input to be used with a brake trigger. Activation of the trigger will start the brake stop distance measurement, where VBOX 3iS will calculate a Time and Distance for a Brake Trigger to 0 km/h test.
Track Marker
Enabling this mode allows the Digital Input to be used as a track marker.
You can use the input switch to
- set a start/ finish line
- set a separate finish line
- set a split line
- clear all virtual lines
- perform a coldstart
You can find more information here.
Enabling this mode allows the Digital Input to be used as a track marker.
You can use the input switch to
- set a start/ finish line
- set a separate finish line
- set a split line
- clear all virtual lines
- perform a coldstart
You can find more information here.
Defines the digital output of the Speed Sensor.
Sends a configured number of pulses per metre.
Sends a configured number of pulses per metre.
Sends a pulse every time the start/finish line is crossed.
Sends a pulse every time the start/finish line is crossed.
