| Gyroscopes (Angular Sensors*) | |
|---|---|
Dynamic Range |
±450 °/s |
Bias Stability** |
±0.8 °/h |
Angle Random Walk (ARW)** |
0.06 °/√h |
Scale Factor |
0.05 % |
| Accelerometers* | |
|---|---|
Dynamic Range |
±10 g |
Bias Stability** |
12 μg |
Velocity Random Walk (VRW)** |
0.025 (m/s)/√h |
Scale Factor |
0.1 % |
Linearity (% of full-scale range) |
0.1 % |
| Environmental and Physical | |
|---|---|
Voltage |
7 to 30 V DC |
Operating Temperature |
-40 °C to +85 °C |
Unit Weight |
160 g |
IP Rating |
|
Dimensions (Overall) |
60 x 76 x 29 mm |
Shock Survival |
1000 g (Half-sine, 0.5 m/sec) |
Power Consumption |
< 1 W |
* Inertial measurement sensors are highly sensitive mechanical systems. Their performance and life span can be impacted by severe vibration or heavy knocks, and we can only guarantee the gyroscope and accelerometer specifications for a maximum of 2 years from the date of purchase.
** 1- sigma i.e. 1 standard deviation.
| Gyroscopes (Angular Sensors*) | |
|---|---|
Dynamic Range |
±450 °/s |
Bias Stability** |
±1.2 °/h |
Angle Random Walk (ARW)** |
0.08 °/√h |
Scale Factor |
0.05 % |
| Accelerometers* | |
|---|---|
Dynamic Range |
±4 g |
Bias Stability** |
14 μg |
Velocity Random Walk (VRW)** |
0.02 (m/s)/√h |
Scale Factor |
0.1 % |
Linearity (% of full-scale range) |
0.1 % |
| Environmental and Physical | |
|---|---|
Voltage |
7 to 30 V DC |
Operating Temperature |
-40 °C to +85 °C |
Unit Weight |
160 g |
IP Rating |
|
Dimensions (Overall) |
60 x 76 x 29 mm |
Shock Survival |
1000 g (Half-sine, 0.5 m/sec) |
Power Consumption |
< 1 W |
* Inertial measurement sensors are highly sensitive mechanical systems. Their performance and life span can be impacted by severe vibration or heavy knocks, and we can only guarantee the gyroscope and accelerometer specifications for a maximum of 2 years from the date of purchase.
** 1- sigma i.e. 1 standard deviation.

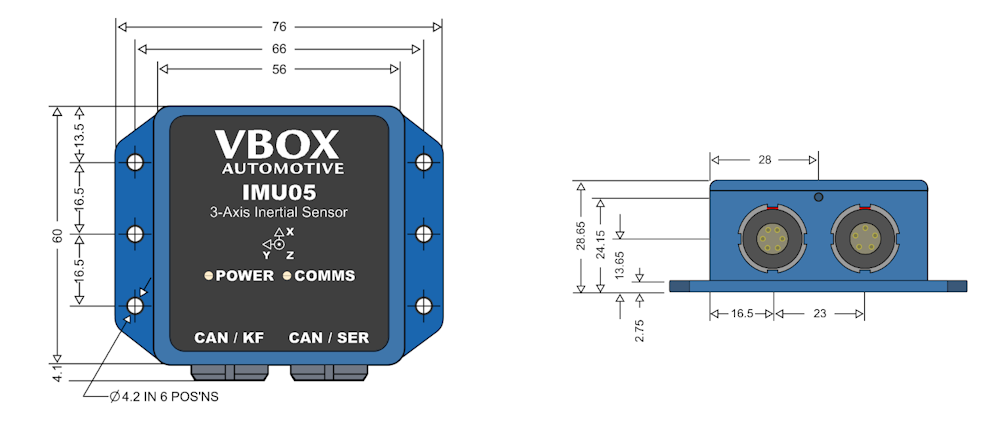

The following diagram relates to both IMU05 and IMU05-S.
