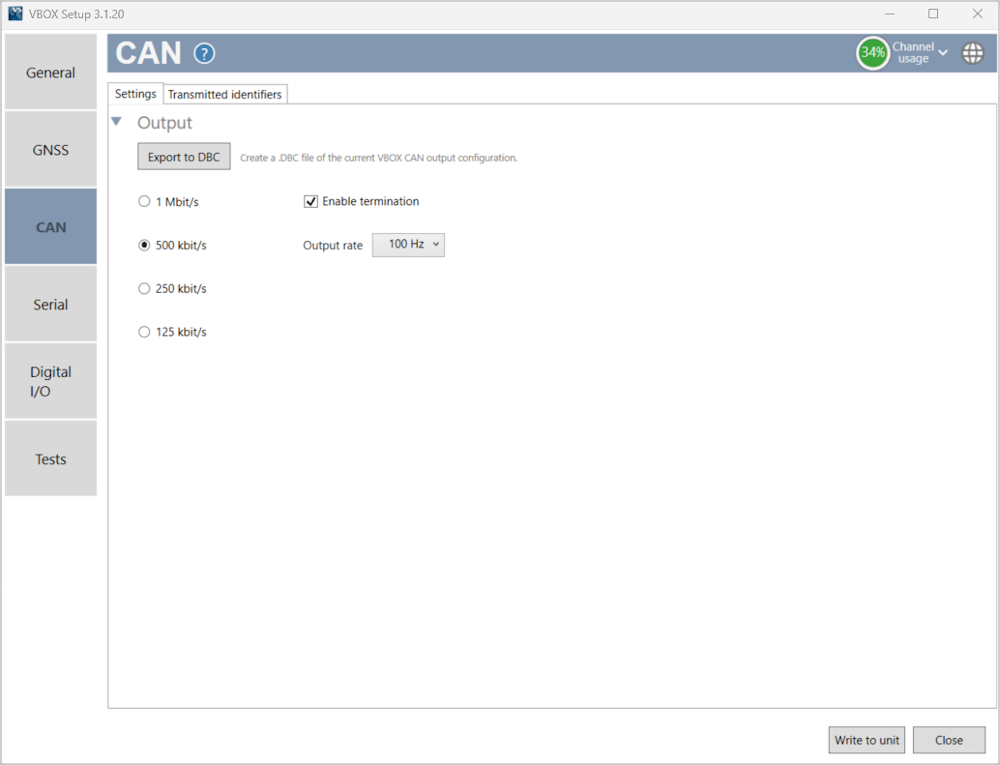

Configure the output baud rates and termination and export the channel information as a .dbc file.
This area will display the CAN bus channel load.
If the bus loading is more than 70%, the icon in the top right corner will become red. When it is more than 75% the icon will start flashing. If you choose to write to the unit while the CAN bus loading exceeds 70%, you will trigger a warning message.
This area will display the CAN bus channel load.
If the bus loading is more than 70%, the icon in the top right corner will become red. When it is more than 75% the icon will start flashing. If you choose to write to the unit while the CAN bus loading exceeds 70%, you will trigger a warning message.
The software has four baud rate output values:
- 1 Mbit/s
- 500 kbit/s
- 250 kbit/s
- 125 kbit/s
The software has four baud rate output values:
- 1 Mbit/s
- 500 kbit/s
- 250 kbit/s
- 125 kbit/s
Select to Enable or Disable CAN output termination.
Select to Enable or Disable CAN output termination.
Select to choose the CAN output rate:
- 1 Hz
- 5 Hz
- 10 Hz
- 20 Hz
- 50 Hz
- 100 Hz
Select to choose the CAN output rate:
- 1 Hz
- 5 Hz
- 10 Hz
- 20 Hz
- 50 Hz
- 100 Hz
Create a .dbc file of the currently configured VBOX channels.
Create a .dbc file of the currently configured VBOX channels.

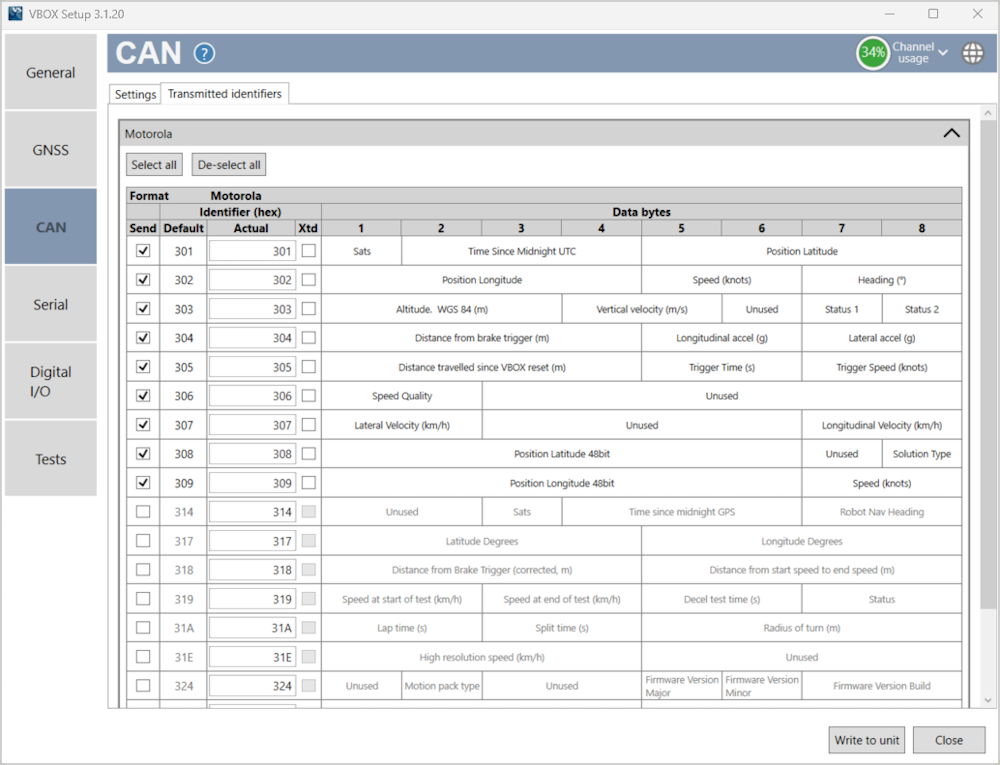

Select which CAN output identifiers you would like transmitted.
Send
To switch a CAN message on/off, tick or untick the box for corresponding message.
Default / Actual ID
This allows the modification of the CAN IDs transmitted by the VBOX Speed Sensor unit. Default values are the Racelogic standard IDs of 0x301, 0x302 ... 0x307.
Xtd
To change the identifier format from standard 11-bit to extended 29-bit, tick the Xtd box in the corresponding column.
Data Bytes
Shows which channels will be sent out in each message.
