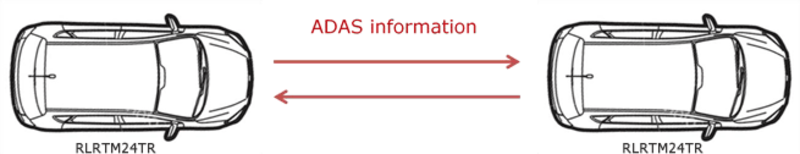

Use 1 Target radios to transmit data from a target vehicle to a subject vehicle and vice versa. This enables both vehicles to calculate separation data live.

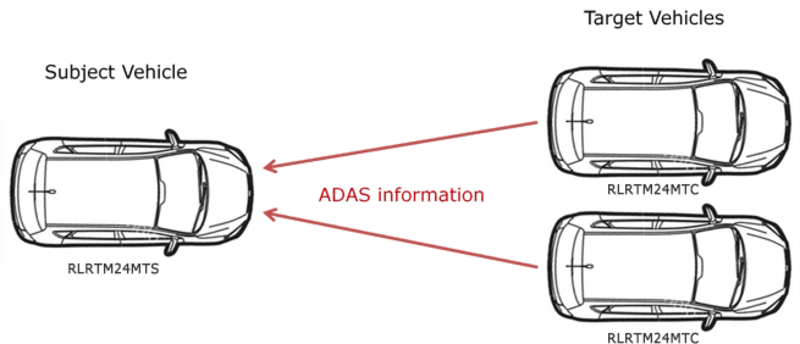

Use 2 Target radios to calculate parameters from two target vehicles simultaneously. The data will flow in one direction but allows two target vehicles to transmit their data to one subject vehicle, which can calculate the separation data live.
Use 3 Target radios to transmit data from 3 target vehicles to a subject vehicle and vice versa. This enables both vehicles to calculate separation data live.

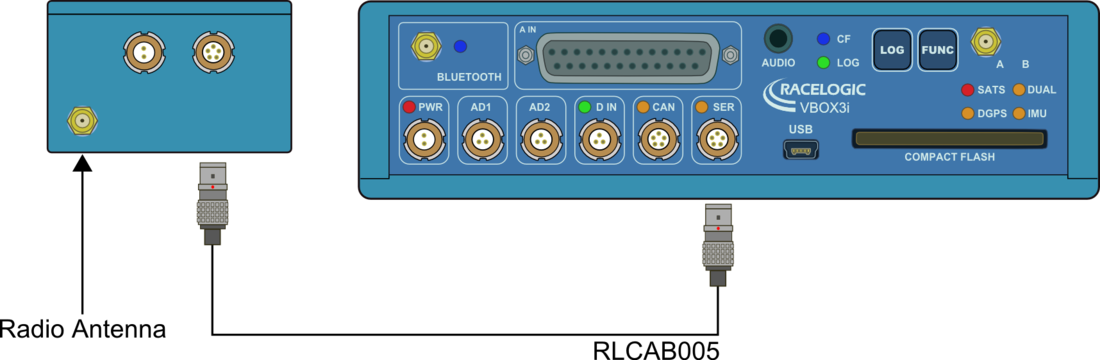

The VBOX 3i unit in the target vehicle transmits serial data from the socket marked SER or RS232 through a server radio to a client radio connected to the VBOX in the subject vehicle.
You only need one connection as the radio will take power from the VBOX via a 5-way Lemo to 5-way Lemo cable.
IMPORTANT
If your test vehicle has built-in Wi-Fi, you may experience interference on the ADAS radio signals. Where possible, we recommend disabling the vehicle's hotspot before you perform the test.

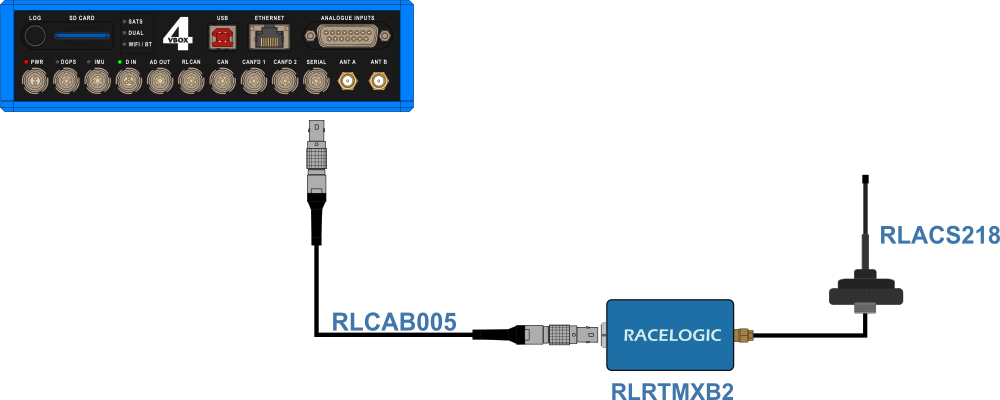

The VBOX 4 unit in the target vehicle transmits serial data from the socket marked SERIAL through a server radio to a client radio connected to the VBOX in the subject vehicle.
You only need one connection as the radio will take power from the VBOX via the 5-way Lemo to 5-way Lemo cable.
- RLRTMXB2 – VBOX to VBOX Telemetry Radio 1, 2 or 3 Target (Worldwide)
- RLRTM24TR – VBOX ADAS Telemetry radio pair for 1 Target (EU Spec)
- RLRTM24TRJP – VBOX ADAS Telemetry radio pair for 1 Target (Japan Spec)
- RLRTM24TRU – VBOX ADAS Telemetry radio pair for 1 Target (Rest of the World Spec)
- RLRTM24MTS – VBOX ADAS Radio Server (Subject/ Target) for 2 Target (EU Spec)
- RLRTM24MTC – VBOX ADAS Radio Client (Subject/ Target) for 2 Target (EU Spec)
- RLRTM24MTSJP – VBOX ADAS Radio Server (Subject/ Target) for 2 Target (Japan Spec)
- RLRTM24MTCJP – VBOX ADAS Radio Client (Subject/ Target) for 2 Target (Japan Spec)
- RLRTM24MTSU – VBOX ADAS Radio Server (Subject/ Target) for 2 Target (Rest of World Spec)
- RLRTM24MTCU – VBOX ADAS Radio Client (Subject/ Target) for 2 Target (Rest of World Spec)
- RLRTM243TS – VBOX ADAS Radio Server (Subject/ Target) for 3 Target (EU Spec)
- RLRTM243TC – VBOX ADAS Radio Client (Subject/ Target) for 3 Target (EU Spec)
- RLRTM243TSJP – VBOX ADAS Radio Server (Subject/ Target) for 3 Target (Japan Spec)
- RLRTM243TCJP – VBOX ADAS Radio Client (Subject/ Target) for 3 Target (Japan Spec)
- RLRTM243TSU – VBOX ADAS Radio Server (Subject/ Target) for 3 Target (Rest of World Spec)
- RLRTM243TCU – VBOX ADAS Radio Client (Subject/ Target) for 3 Target (Rest of World Spec)
