The antenna is designed for wireless networks on 2.4 GHz band. Having a high gain and performance it can be customized with a particular selection of cable length and your choice of connector.
| Mechanical | |
|---|---|
| Termination | Time microwave cable LMR400 with ‘N’ type crimp plug |
| Protection | Direct grounded |
| Weight | 0.5 kg |
| Length | 580 mm |
| Radome | Parallel glass fibre tube, white, 26 mm |
| Mounting | Integral diecast aluminium alloy LM6 |
| Fasteners | M8 V bolts stainless steel |
| Impedance | 50 Ohms (nominal) |
| Electrical | |
|---|---|
| Gain | Time microwave cable LMR400 with ‘N’ type crimp plug |
| Impedance | 50 Ohms (nominal) |
| Return loss | Better than -14 dB (at 2400–2483 MHz) |
| VSWR | Better than 1.5:1 (at 2400–2483 MHz) |
| Bandwidth | 10% (approximate) |
| Maximum Power | 25 W continuous |

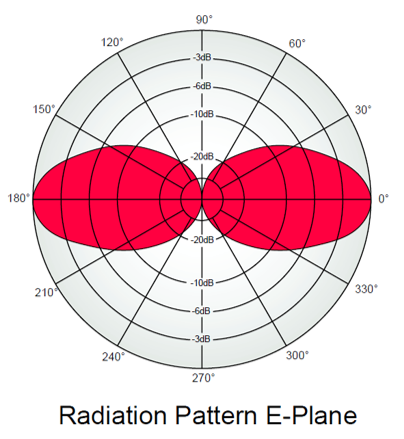

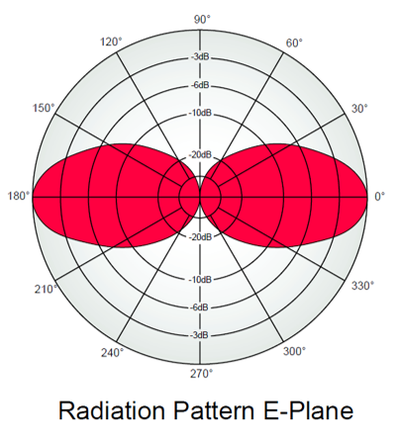

| E Plane BW | 33º |
