Inputs and Outputs

Updated on Jun 1, 2026

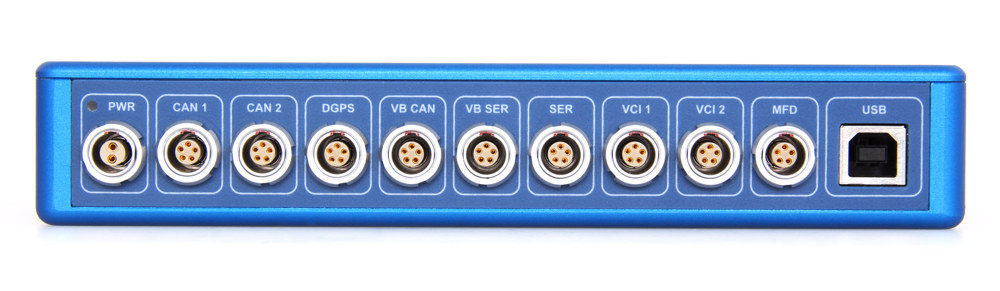

Photograph of the CAN Hub.
Port Connector Type Data Description Compatible Modules
PWR Image of the PWR port with red LED 2-pin Lemo Input

Power input to CAN Hub and VBOX.

  • VBOX 3i ADAS is powered from the CAN Hub so you only need to connect one power cable.

N/A
CAN 1 Image of the CAN 1 port 5-pin Lemo Input OR Output

Input - Racelogic modules

  • Max 64 channels*

Output - Racelogic CAN output only
  • IMU03/IMU04/
  • IMU04-V2/IMU05
  • YAW03
  • MIM01
  • TC8-V1/TC8-V2
  • ADC03
  • FIM03
CAN 2 Image of the CAN 2 port 5-pin Lemo Input OR Output

Input - Racelogic modules

  • Max 64 channels*

Output - Racelogic CAN output only
  • IMU03/IMU04/
  • IMU04-V2/IMU05
  • YAW03
  • MIM01
  • TC8-V1/TC8-V2
  • ADC03
  • FIM03
DGPS Image of the DGPS port 5-pin Lemo Input

Dedicated serial port for DGPS/RTK corrections.

  • Baud rate
  • NTRIP Modem
  • Base Station Client Radios
VB CAN Image of the VB CAN port 5-pin Lemo Output

Dedicated high-speed data and power link to connected VBOX 3i ADAS.

N/A
VB SER Image of the VB SER port 5-pin Lemo Output

Dedicated high-speed data and power link to connected VBOX 3i ADAS.

N/A
SER Image of the SER port 5-pin Lemo Input

Dedicated RS232 serial port for telemetry radios or serial connections to PC.
  • ADAS Radios
VCI 1 Image of the VCI 1 port 5-pin Lemo Input OR Output

Input - VCI input

  • Max 32 VCI channels

Output - Racelogic CAN output only

N/A
VCI 2 Image of the VCI 2 port 5-pin Lemo Input OR Output

Input - VCI input

  • Max 32 VCI channels*

Output - Racelogic CAN output only

N/A
MFD Image of the MFD port 5-pin Lemo Output

Dedicated port for Multifunction Display connections ONLY.
  • MFD
  • MFD Touch
  • VBOX Manager
USB Image of the USB port USB-B Maintenance

Port for firmware updates.

N/A
