Please register your VBOX 3iS unit so that Racelogic can continue to provide you with notifications about the latest software releases and firmware upgrades for your Racelogic product and offer technical support.
Register your device here.
| Product Code | Quantity | Description |
|---|---|---|

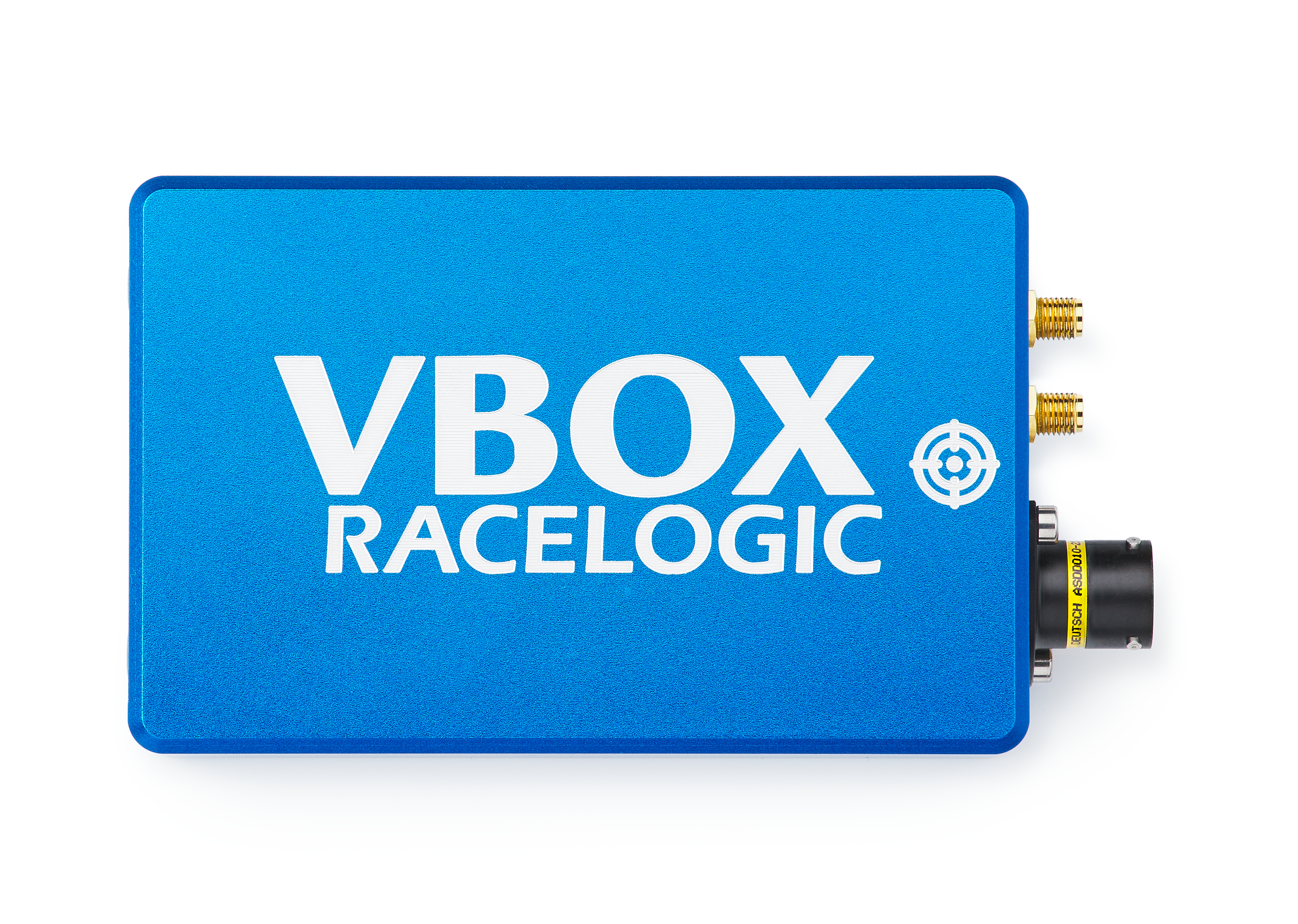

| VB3iSDR | 1 | Dual Antenna with RTK unit |
| RLACS283 | 2 | Dual Band GNSS Antenna |
| RLCAB001 | 1 | Lemo 5W plug - 9W Socket - 2 m (serial configuration) |
| RLCAB163 | 1 | Deutsch 23W ASDD - Multiple Connectors |
| RLACS106 | 1 | VBOX Plastic Carry Case |
| VBFMAN | 1 | VBOX File Manager Unit |
| RLCAB005-C | 1 | Lemo 5W Plug - Lemo 5W PLug - 2 m cable (VBOX-VBOX Module PWR/CAN) |
| RLCALUKAS | 1 | Certificate of Calibration - UKAS Accredited Calibration Laboratory No. 21354 |
| RLCAB010LE | 1 | Lemo 2-way Play - Cigar Plug - 2 m cable (Power) Screened |
| Product Code | Quantity | Description |
|---|---|---|
| VB3iSSR-V1 | 1 | VBOX 3iS 100 Hz GNSS System with Inbuilt IMU and RTK - Unit only |
| RLACS156 | 1 | GPS / GLONASS Low Profile Antenna - 4 m |

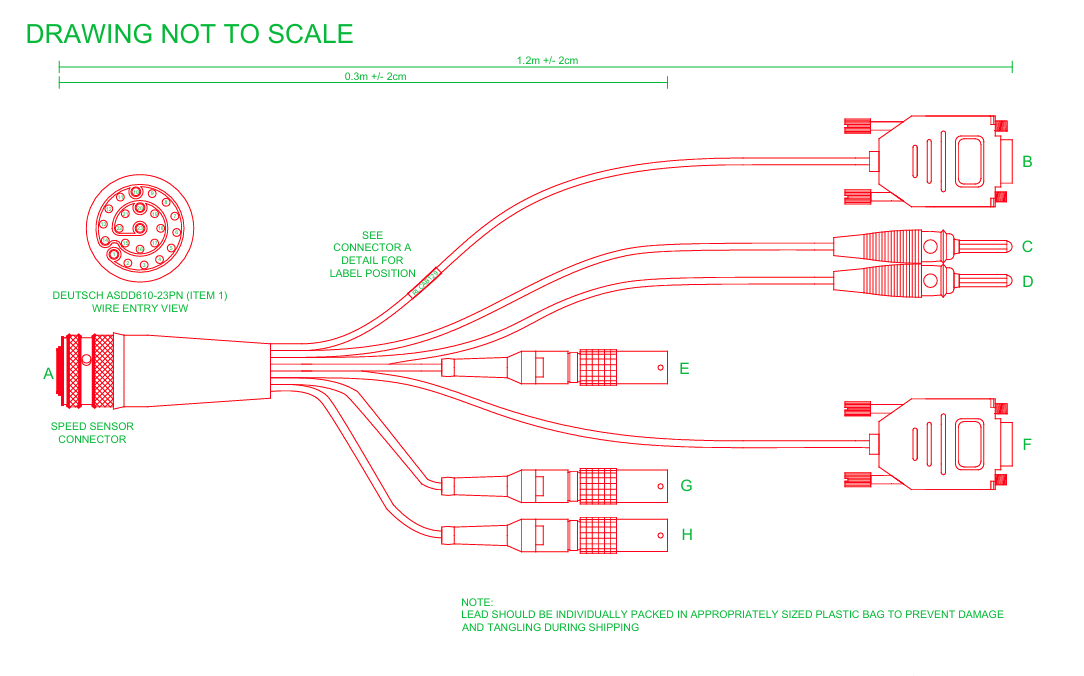

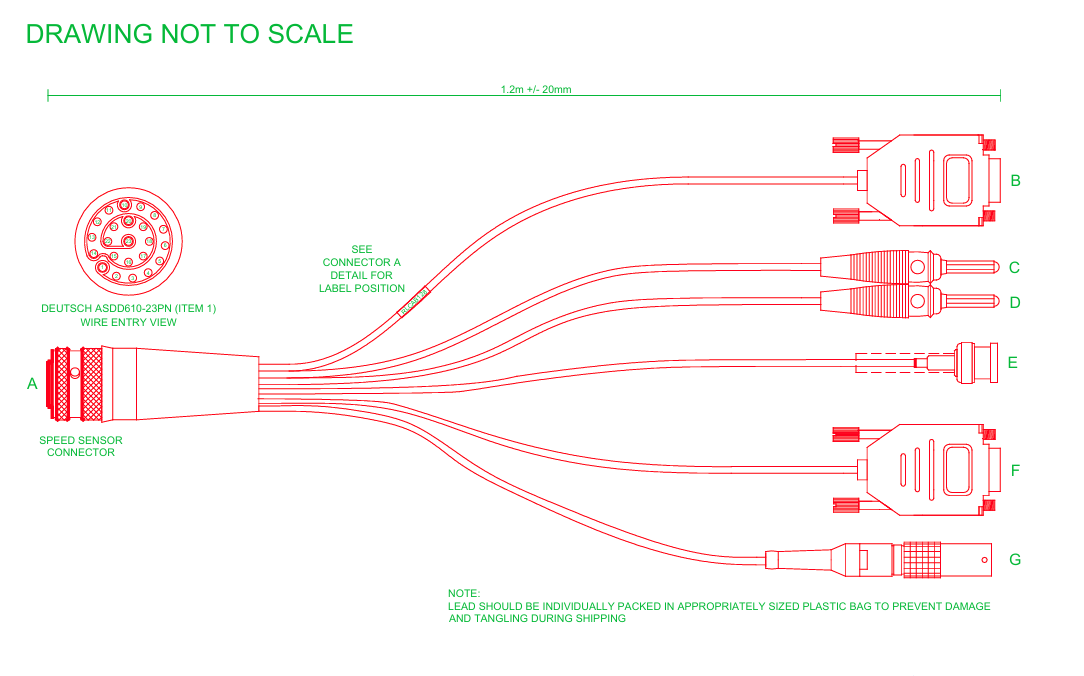

| RLCAB128 / RLCAB129 / RLCAB130 | 1 | Cable Loom (each option is for a specific use, as selected when ordered) |
| RLACS106 | 1 | VBOX Plastic Carry Case |
| RLCAB001 | 1 | Lemo 5W Plug - 9W D Socket - 2 m cable (Serial Configuration) |
| RLCALUKAS | 1 | Certificate of Calibration - UKAS Accredited Calibration Laboratory No. 21354 |
| Product Code | Quantity | Description |
|---|---|---|
| VB3iS-V2 | 1 | VBOX 3iS Single Antenna Speed Sensor Unit |
| RLACS156 | 1 | GPS / GLONASS Low Profile Antenna (no ground plane) with detachable RL-174 SMA-SMA cable - 4 m |
| RLCAB163 | 1 | Cable Loom - Deutsch 23W ASDD - Multiple Connectors |
| RLCAB001 | 1 | Lemo 5W - 9W Socket - 2 m (Serial Configuration) |
| RLACS106 | 1 | VBOX Plastic Carry Case |
| RLCAB010LE | 1 | Lemo 2W PLug - Cigar Plug - 2 m cable (Power) Screened |
| ANTLOCSTKRL1 | 1 | Antenna Location Sticker |
| RLCALUKAS | 1 | Certificate of Calibration |
Note: You may have to order additional cables separately.
VBOX 3iS units are powered via the POWER IN lead or the CAN OUT + POWER lead on the supplied loom. You can power VBOX 3iS units from a wide range of voltage sources.
IMPORTANT
The maximum operating voltage input must not exceed 30 V DC. Failure to observe this could result in damage to the VBOX unit.
VBOX 3iS has been designed to generate as little heat as possible and it has a wide operating temperature range. It is, however, good practice to mount it in a position where it has sufficient airflow around the case.
The reference point on the unit when you need to measure offsets and distances.
