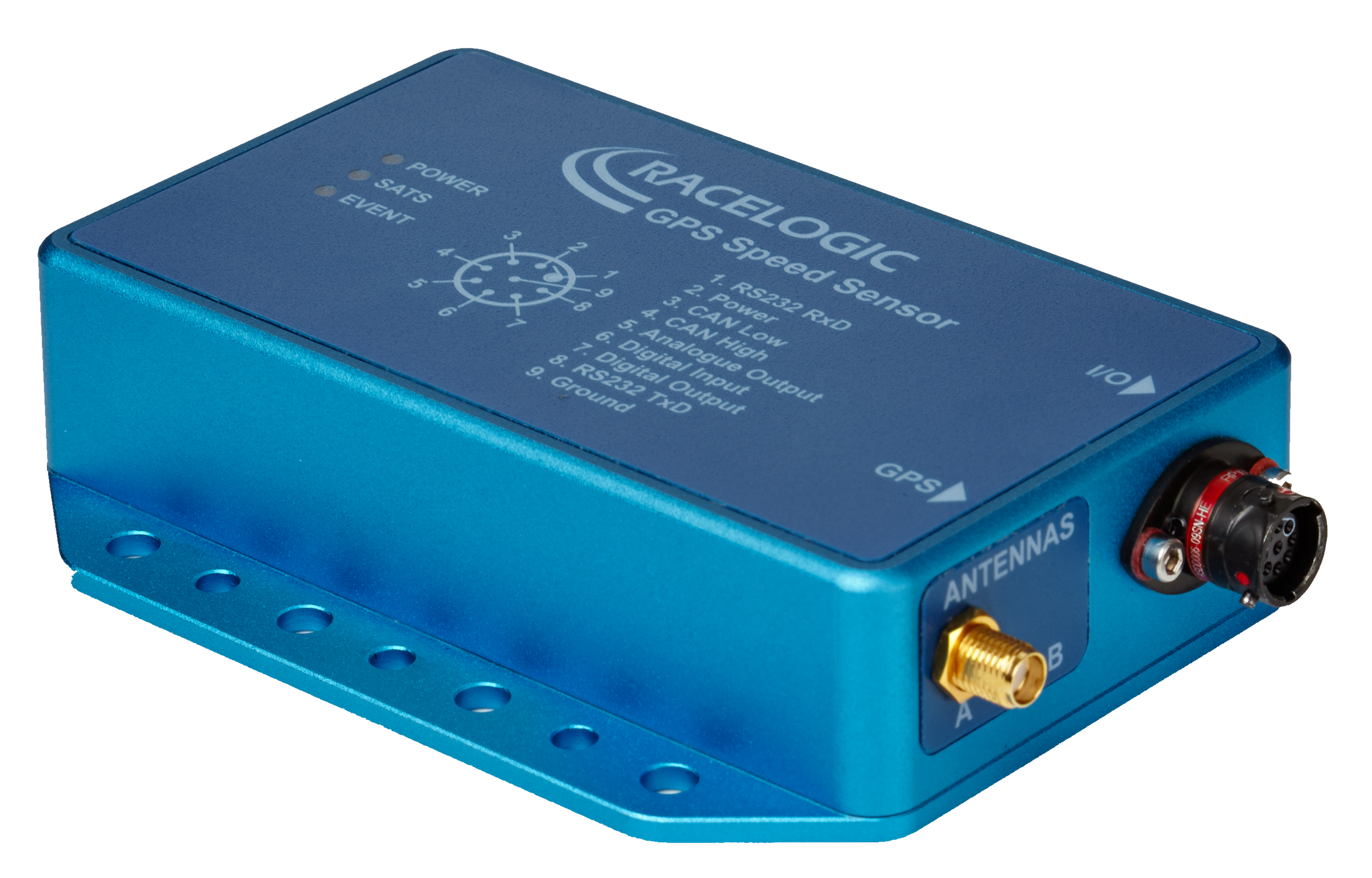

The Racelogic Speed Sensors feature versions with 25 Hz and 100 Hz update rates.
Based on a range of high-accuracy GNSS engines, you can use the speed sensor to perform non-contact sensing of velocity, providing signal output data on CAN, analogue, digital and serial. This allows for easy integration with data loggers and testing applications.
You can assign the analogue output to vehicle speed, lateral acceleration, longitudinal acceleration, or lap beacon marker with user selectable scaling. You can configure the digital output as either a digital speed pulse output or a lap beacon marker.
You can use the speed sensor straight from the box and it will output digital and analogue signals according to the default settings. You can change the settings in the VBOX Setup Software. You can find more information about how to configure the Speed Sensor in Chapter 5 of this user guide.
The VBOX Speed Sensors are also compatible with the VBOX Test Suite software.
| RLVBSS25 | RLVBSS100 |
|---|---|
| GNSS Receiver | GNSS Receiver |
| CAN Bus Output includes: Speed, Heading, True Heading, Brake Stop Distance, Radius of Turn, Position | CAN Bus Output includes: Speed, Heading, True Heading, Brake Stop Distance, Radius of Turn, Position |
| RS232 Serial Output of NMEA, position, velocity and time | RS232 Serial Output of NMEA, position, velocity and time |
| User-configurable Analogue and Digital Output | User-configurable Analogue and Digital Output |
| Virtual Lap Beacon Output | Virtual Lap Beacon Output |
| Rugged Deutsch ASDD Autosport connector | Rugged Deutsch ASDD Autosport connector |
| High-quality aluminium enclosure | High-quality aluminium enclosure |
| IP66 rated: water and dustproof | IP66 rated: water and dustproof |
| Wide 7 to 30 V operating range | Wide 7 to 30 V operating range |
| Low-current consumption | Low-current consumption |
| Online VBOX Test Suite compatibility | Online VBOX Test Suite compatibility |
| Compatible with DGPS Basestation | |
| CAN stabilisation |
