When installing the VBOX 3iS Dual Antenna RTK in your vehicle, you can either fix it rigidly to the vehicle using the fixing holes or secure it with a telescopic mounting arm.

Try to position the unit as close to the centre of the vehicle as possible, and make sure that it is level with the ground. If you are using the internal IMU, you should ideally mount the unit in the direction of travel (as shown in the image below). If this is not possible, you can change the orientation of the internal IMU in the VBOX Setup Software, on the Front Panelor with the VBOX Manager.


Illustration of mounting the VBOX 3iS on a vehicle.

You can mount VBOX 3iS rigidly to the vehicle via the fixing holes, ideally mid-way along the wheelbase.

A flexible way to fix the VBOX 3iS rigidly in the vehicle is by using the Racelogic Mounting Arm. The three-part telescopic handle is fully adjustable to any length between 70 – 150 cm, another 20 cm can be added by extending the third section using the compression lever.

Both ends are fixed to an 8 x 13 cm plate which sits on a joint to accommodate uneven surfaces. The VBOX 3iS can then be pressed against the floor and the vehicle's ceiling, ensuring that the VBOX 3iS is fixed tightly. Another option is to use a bracket that attaches to the mounting arm, meaning that the VBOX 3iS can be fixed to the mounting arm before being installed within the vehicle. If using the bracket, it is recommended that the VBOX 3iS is mounted vertically towards the bottom of the pole for greater stability.


Three photos a VBOX 3iS attached to a mounting arm.

Please contact vbox@racelogic.co.uk for more information or to order a mounting arm (RLACS212-V2) and/or mounting bracket (RLACS291).


Appropriate placement of the GNSS antenna is crucial to the quality of the data that is being recorded.

Be aware of objects that can shadow the antenna or block the signal to the antenna. Some objects can also reflect signals which can send weaker GNSS signals to the antenna. This is called multipath, and these reflections can disturb the signal in an unpredictable way.

If an antenna is not mounted on a large enough ground plane, multipath reflections can also come from the ground beneath the antenna.

You can find more information about how to mount antennas here.

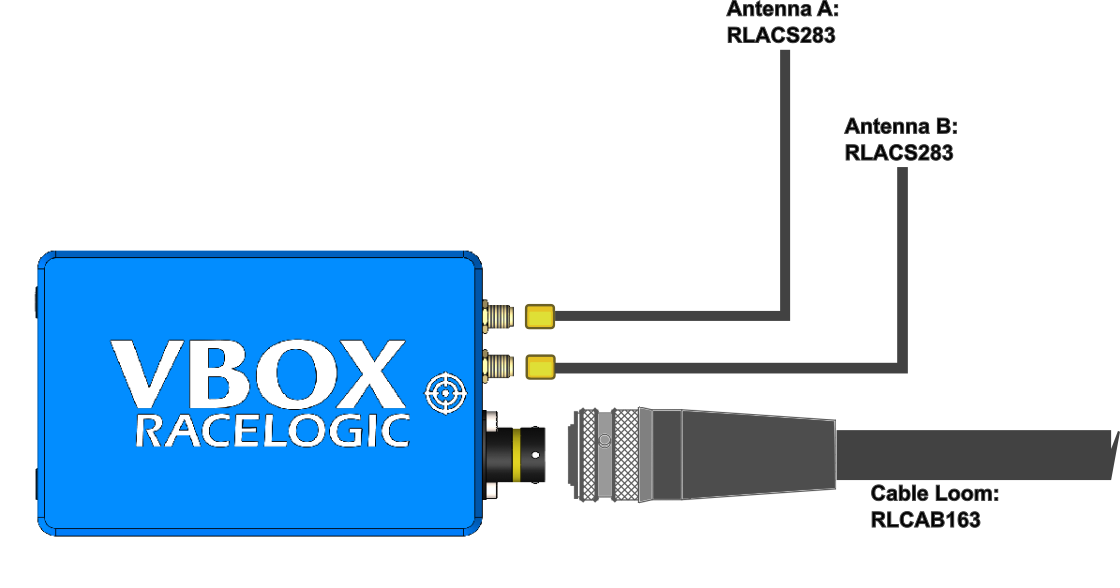

Hardware connection diagramshowing a VBOX 3iS, cable loom connector and two antenna cable connectors.


Photo of the connector on a VBOX 3iS unit.
VBOX 3iS connector
Photo of the connector on a cable loom.
Cable loom connector
Photo of the connector on a VBOX 3iS unit.
VBOX 3iS connector
Photo of the connector on a cable loom.
Cable loom connector
  1. Look at the connectors on both the loom and the unit.
Photograph of the VBOX 3iS connector with no additional markings.
  1. Look at the connectors on both the loom and the unit.
Photograph of the VBOX 3iS connector with no additional markings.
  1. Locate the different sized inner notches on the loom's connector and line them up with the equivalent notches on the unit's connector.
Photograph of the VBOX 3iS connector with the inner notches highlighted.
  1. Locate the different sized inner notches on the loom's connector and line them up with the equivalent notches on the unit's connector.
Photograph of the VBOX 3iS connector with the inner notches highlighted.
  1. Note the outer notches on the connector.
Photograph of the VBOX 3iS connector with the outer notches highlighted.
  1. Note the outer notches on the connector.
Photograph of the VBOX 3iS connector with the outer notches highlighted.


Note the notches on the connectors as illustrated above. Twist the loom's connector while you gently pull it away from the unit.
