VBOX Base Station has been updated over time to implement new features and specifications, an overview of the different versions is listed below. Current datasheets as well as legacy datasheets for older versions are available on the VBOX Automotive website.
| Model | Constellations | Correction Messages | Battery | Radio | Antenna |
|---|---|---|---|---|---|

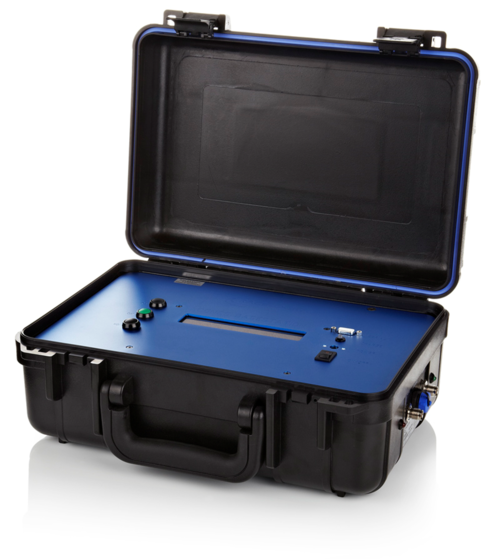

| Base Station 6 (current) RLVBBS6 | GPS + GLONASS + Galileo + Beidou | • RTCM v3.2 MSM4 and MSM7 • RTCM v3 • CMR • Racelogic proprietary (2 cm) • RTCM v2 | 9000 mAh, 10.8 V NiMH | Not supplied | RLCAB101-3, ACS279 |
| Base Station 5 RLVBBS5 | GPS + GLONASS | • RTCM v3 • CMR • Racelogic proprietary (2 cm) • RTCM v2 | 9000 mAh, 10.8 V NiMH | Not supplied | RLCAB101-3, ACS279 |
| Base Station 4 RLVBBS4RG | GPS + GLONASS | • RTCM v3 • CMR • Racelogic proprietary (2 cm) • RTCM v2 | 9000 mAh, 10.8 V NiMH | Not supplied | RLVBACS068 |
| Base Station 4 RLVBBS4 | GPS | • Racelogic proprietary (20 cm) • RTCM v2 | 9000 mAh, 10.8 V NiMH | Not supplied | RLACS194 |

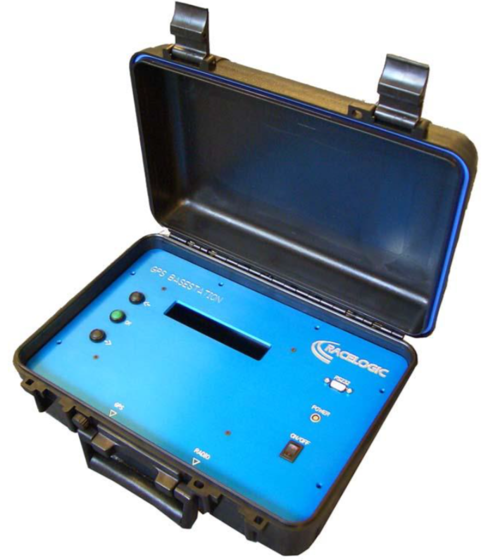

| Base Station 3 RLVBBS3G | GPS | • Racelogic proprietary (2 cm) • RTCM v3 • RTCM v2 | 9000 mAh, 7 V | 900/868 MHz | BS3_GPS, CABL |
| Base Station2 RLVBBS2 | GPS | • Racelogic proprietary (20 cm) • RTCM v2 | 9000 mAh, 7 V | 900/868 MHz | BS2_GPS, CABL |
NOTES
- Base Station 1 was a concept only model and was not produced.
- RTCM v3.2 MSM7 message includes Type 1006, Type 1008, Type 1033, Type 1230, Type 4091, Type 1077, Type 1087, Type 1097 and Type 1127 messages.
- RTCM v3.2 MSM4 message includes Type 1006, Type 1008, Type 1033, Type 1230, Type 4091, Type 1074, Type 1084, Type 1094 and Type 1124 messages.
- RTCM v3 message includes Type 1004, Type 1006, Type 1008 and Type 1012 messages.
- CMR message includes Type 0, Type 1 and Type 3 messages.
- RTCM v2 message includes Type 1, Type 3, Type 21 and Type 32 messages.
Refer to the Base Station Technical Specification page for more more information about these message types.
