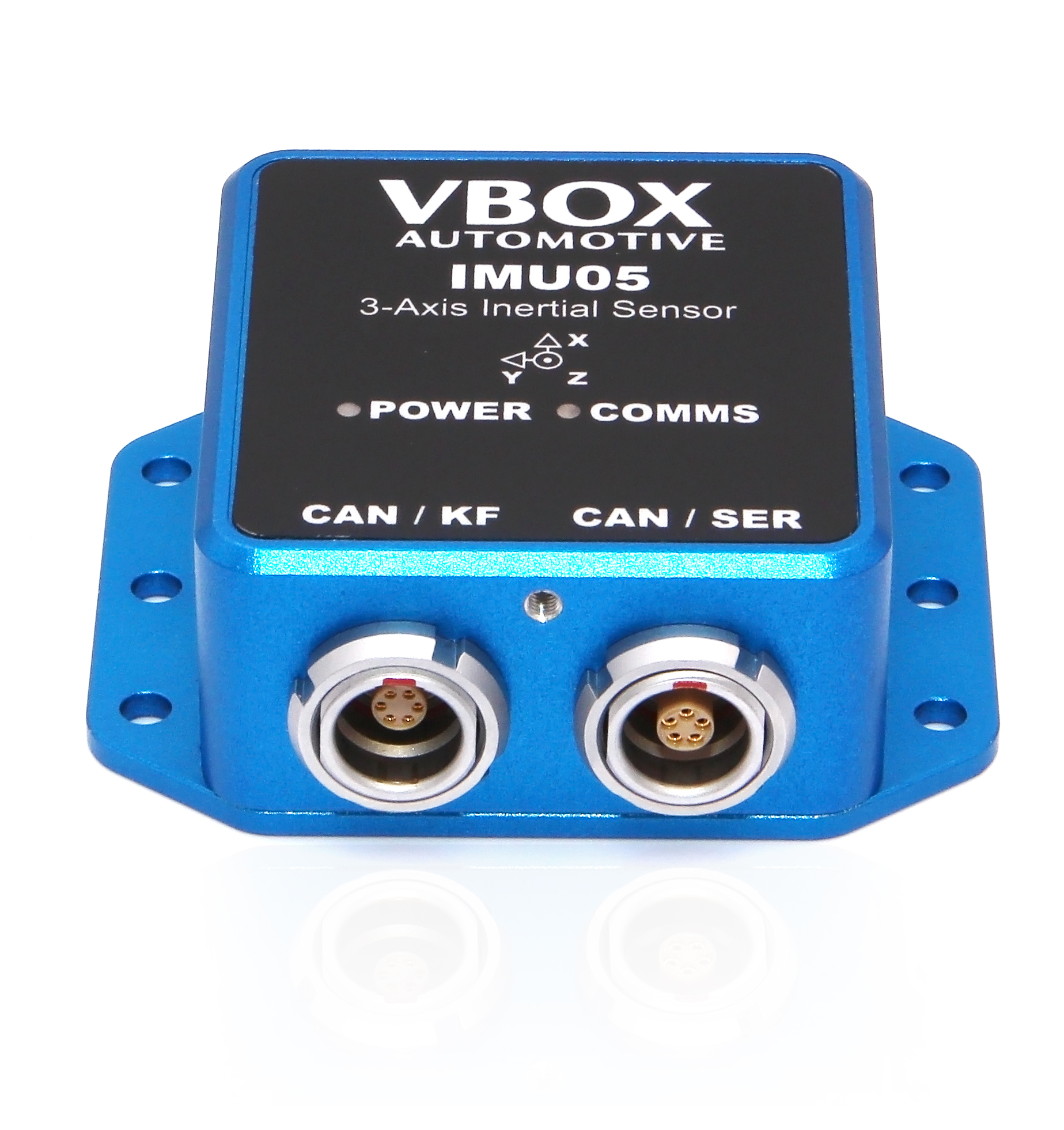

High-precision measurements of pitch, roll, and yaw rate using three industry leading gyroscopes, as well as x, y, z acceleration via three accelerometers.
IMU05 is available in two versions. The regular model features three top-tier, highly accurate gyroscopes with a bias stability of 1.2°/hr, whilst the S model measures roll, pitch, and yaw rate using three outstanding MEMS high-precision gyroscopes that maintain a bias stability of just 0.8°/hr.
Both options can be used as a standalone sensor, with easy connectivity and configuration options through the CAN or serial interface or in conjunction with VBOX data loggers, allowing for precise synchronisation to GNSS time.
Data from the IMU can be seamlessly integrated with GNSS data from a VBOX 3i or VBOX 4 to enhance measurement accuracy when GNSS signal reception is interrupted or weakened.
- GNSS Integration
- High Accuracy
- Internal Temperature Compensation
- Fast Initialisation
- Low Drift / Low Noise
- CAN Bus Interface
| IMU05 | IMU05-S |
|---|---|
1.2°/h bias drift |
0.8°/h bias drift |
±4 g acceleration range in each axis |
±10 g acceleration range in each axis |
5 x 10-14 g acceleration resolution |
6 x 10-13 g acceleration resolution |
0.02° RMS Pitch/Roll angle with VBOX 4 |
0.013° RMS Pitch/Roll angle with VBOX 4 |
0.1° RMS Yaw angle with VBOX 4 |
0.07° RMS Yaw angle with VBOX 4 |
