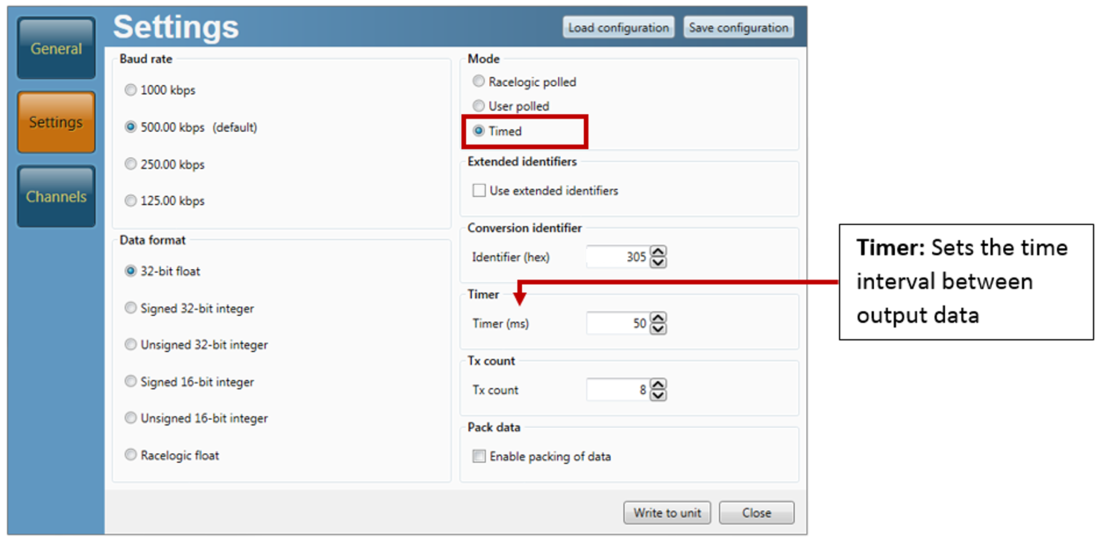

To allow ADC03 to communicate with Video VBOX, it needs to be set into ‘Timed Mode’ using VBOX Setup.
The timer value is in milliseconds (ms). A smaller value means data will be sent more frequently, a larger value means data will be sent less frequently. The range of values that can be entered is 0 to 65535 however the minimum value that should be entered is 10. Below this value data values may be repeated on successive cycles. If a value of 0 is entered the module will change it to 1 on the next power cycle.
To log data from a module, you need to load in the CAN database file relevant to the module that you're using. The .DBC files for RL modules can be downloaded from our VBOX Automotive website.
NOTE
In order to communicate with Video VBOX units, Racelogic modules must be set into Timed CAN mode. For more information on how to do this, please see the user guide for the module in use.
Within 'CAN and Module Configuration' expand the 'Mode' section and ensure that 'VCI' is selected, and the 'Send Acknowledge' box is ticked.
Within 'CAN and Module Configuration' expand the 'Mode' section and ensure that 'VCI' is selected, and the 'Send Acknowledge' box is ticked.
Within the same CAN and module configuration section, now expand the Inputs section.
Please download the relevant CAN file for your Racelogic module from the Racelogic website.

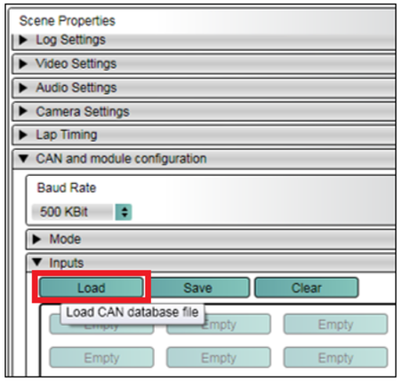

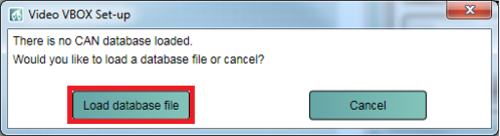

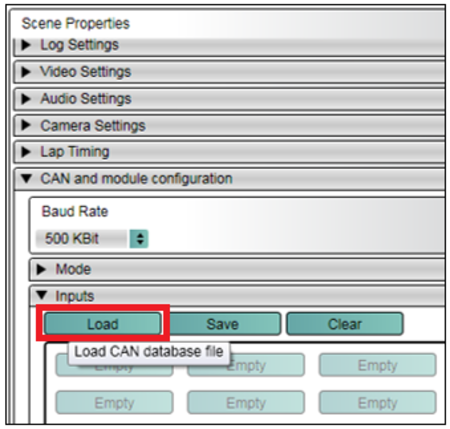

Once you have the correct CAN file, to setup a CAN channel for your vehicle, click on Load under Inputs.

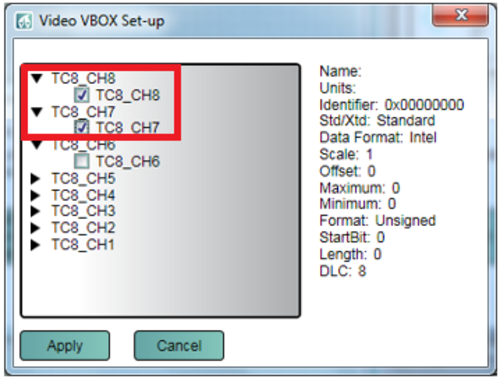

To do this, you simply expand and then tick the desired channels. When you have selected all the channels you need, click ‘Apply’.
You will now see the selected channels appear under the ‘Inputs’ section under the ‘CAN and module configuration’ in scene properties. These are now loaded and will be logged to the VBO file. They can also now be assigned to an element.
NOTE
You cannot log from the vehicle CAN Bus at the same time as using a Racelogic Input Module.
For further information on working with elements and creating scenes, please see the Video VBOX User Manual here.
