1. Performance Box Touch V1 has an internal patch antenna. This means that where the unit has a clear view of the sky without any interference, an additional antenna is not required in most circumstances.

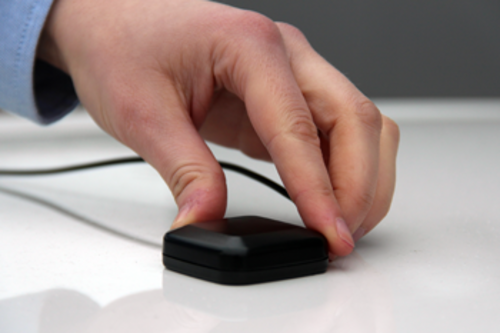

   However, if it is required, you should mount the external GPS antenna (RLACS284) in the centre of the roof of the vehicle, away from roof bars and other antennas. You can find more information about how to mount your external antenna here.

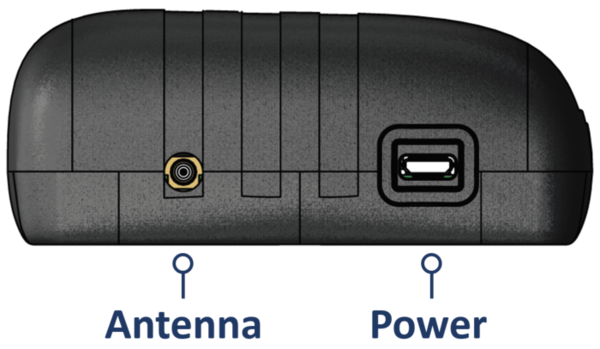

2. If you are using an external antenna, connect it to the Performance Box Touch.

3. Connect the Battery (RLACS290) if required. You can find more information about the battery here.

4. Connect the Swivel Neck Richter Suction Mount (RLACS277) to the rear of the unit (or the battery if applicable) and attach the suction mount to the vehicle's windscreen. You can find more information about the mounting of the unit here.

5. Connect the power via the Power socket, or if you are using the battery independent of a power source, press and hold the Power button on the battery for a few seconds.

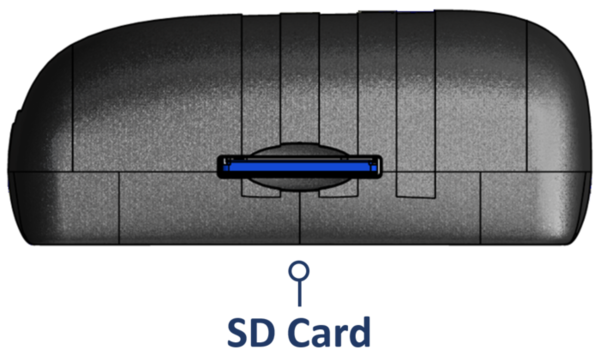

6. Insert the SD card into the SD card slot. The SD Card Icon should display in green as long as the card has available space.

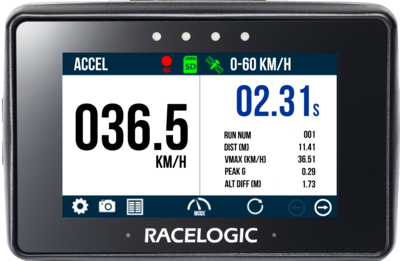

7. When the unit has booted up, select the Mode Button and press ACCEL if it is not already selected.

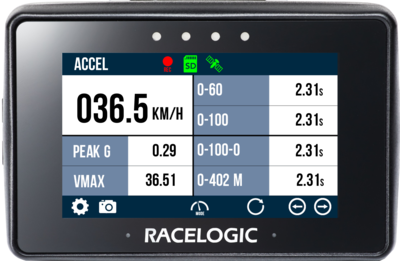

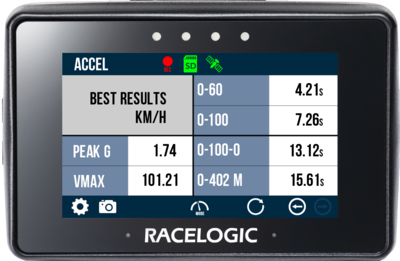

8. Select which Accel screen you would like to display (Primary, Secondary or Best Result). Press the Forward and Back arrows at the bottom right of the screen or swipe left or right to select.

9. Select the Settings Button, the Accel option and choose the Start and End Parameters of the 4 concurrent tests. By default, these are 0–60, 0–100, 0–100–0 and 0–¼ mile.

10. If you would like an audible and visual alert when the test is completed or when the target speed is met during a 0-Speed-0 test, enable the Alert at End/Target in the Settings.

11. If you would like the test to start only after a distance of 1 ft or 0.305 m has been covered, enable One Foot Rollout in the Settings.

    Note: Cannot be used in conjunction with Slope Correction.


12. If you would like to apply DB Scanner slope correction method to the test, enable Slope Correct within the Settings.

    Note: cannot be used in conjunction with One foot rollout.


1. Press the Exit Button  to return to the Accel Test screen.

1. Take the vehicle outside and wait for the Performance Box Touch to gain satellite lock. The Satellite Icon should display as solid green .

   Note: The first time that the unit is used, it may take up to 10 - 15 minutes to fully acquire satellites. After this, it will usually take 1 - 2 minutes to acquire satellites.


2. The unit is now ready to display live Accel Test results.

3. By default, Performance Box Touch will automatically start recording when it detects moving in a speed of 0.5 km/h or more. You can change this in the General Settings.

4. By tapping the SD Card Icon when it is green you can manually start or stop the logging of data and override the Configured Logging Strategy.


5. The Record Icon will show when the unit is logging data to the SD card.

   If you have come to a stop, but the Record Icon is still on, you must press the SD Card Icon to stop the logging before you can remove the SD card.

   Sometimes, due to poor satellite visibility, for example in a garage or close to a building, the box may start recording even if the car is stationary. Always check that the Record Icon is not red before you eject the card.


   IMPORTANT
   The SD card should not be removed while the Record Icon is red as it may cause you to lose data.

   Note: If the SD card is removed while the box is still recording, you may need to repair it on a PC before you can use it again.


6. You can take a screenshot of what is displayed on the screen at any time by pressing the Screenshot Button.


7. You can reset all test results shown on the current screen by pressing the Reset Button.


8. When you have finished your testing, you can view your completed test results by pressing the Results Button.

You can find more information on Accel Mode testing here.

1. Performance Box Touch has an internal patch antenna, meaning that in many circumstances, where the unit has a clear view of the sky without any interference, an additional antenna is not required.

   However, if required, mount the external GPS antenna (RLACS284) in the centre of the roof of the vehicle, away from roof bars and other antennas. For more information on antenna mounting positions click here.

1. If applicable, connect the external GPS antenna to the Performance Box Touch.

2. Connect the Battery (RLACS290) if required. For more information on the battery click here.

3. Connect the Swivel Neck Richter Suction Mount (RLACS277) to the rear of the unit or battery and attach to the vehicle windscreen. For more information on mounting click here.

4. Connect the power via the Power socket, or if using the battery independent of a power source, press and hold the Power button on the battery for a few seconds.

5. Insert the SD card into the Side of the Unit. The SD Card Icon should display as green  as long as the card has free space.

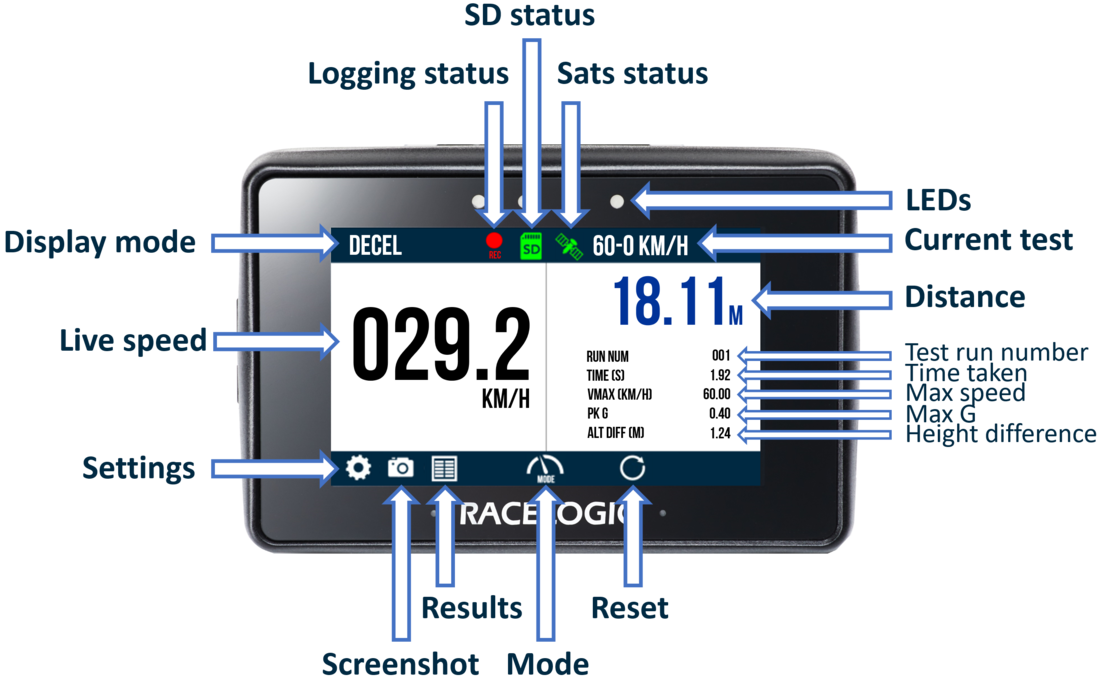

1. When the unit has booted, select the Mode Button  and press DECEL if it is not already selected.

1. Select the Settings Button , then the Decel option and choose from either a Preset Test, or use Custom Start and End Parameters.


1. If you would like an audible and visual alert when the test is completed, enable Alert at End within the Settings.

1. Press the Exit Button  to return to the Decel Test screen.



1. Take the vehicle outside and wait for the Performance Box Touch to gain satellite lock. The Satellite Icon should display as solid green .

   Note: The first time that the unit is used, it may take up to 10 – 15 minutes to fully acquire satellites. After this, it will usually take 1 – 2 minutes to acquire satellites.



1. The unit is now ready to display live Decel Test results.


2. By default, Performance Box Touch will automatically start recording when travelling over 0.5 km/h, this can be changed within the General Settings.

3. Tapping on the SD Card Icon when green  will manually start or stop logging data, overriding the Configured Logging Strategy.

1. The Record Icon will show when the unit is logging data to the SD card.

   If you have come to a stop, but the Record Icon is still on, press the SD Card Icon to stop the logging before removing the card.

   Sometimes, due to poor satellite visibility in a garage or close to a building, the box may start recording, even if the car is stationary. Always check the Record Icon before ejecting the card.


   IMPORTANT – The SD card shouldn't be removed when the Record Icon is on as you may lose data.

   Note: If for some reason the SD card is removed whilst still recording, it may need to be repaired using a PC before it can be reused.



1. A screenshot of what is displayed on the screen can be taken at any time by pressing the Screenshot Button  .


1. To reset all test results shown on the current screen, press the Reset Button .


1. When you have finished your testing, completed test results can be viewed by pressing the Results Button .

More information on Decel Mode testing can be found here.

1. Performance Box Touch V1 has an internal patch antenna. This means that where the unit has a clear view of the sky without any interference, an additional antenna is not required in most circumstances.

   However, if it is required, you should mount the external GPS antenna (RLACS284) in the centre of the roof of the vehicle, away from roof bars and other antennas. You can find more information about how to mount your external antenna here.

2. If you are using an external antenna, connect it to the Performance Box Touch.

3. Connect the Battery (RLACS290) if required. You can find more information about the battery here.

4. Connect the Swivel Neck Richter Suction Mount (RLACS277) to the rear of the unit (or the battery if applicable) and attach the suction mount to the vehicle's windscreen. You can find more information about the mounting of the unit here.

5. Connect the power via the Power socket, or if you are using the battery independent of a power source, press and hold the Power button on the battery for a few seconds.

6. Insert the SD card into the SD card slot. The SD Card Icon should display in green as long as the card has available space.

7. When the unit has booted, select the Mode Button and press LAP TIMING if it is not already selected.

8. Take the vehicle outside and wait for the Performance Box Touch to gain satellite lock. The Satellite Icon should display as solid green.

   Note: The first time you use the unit, it may take up to 10 to15 minutes for it to fully acquire satellites. After this, it will usually only take 1 to 2 minutes to acquire satellite lock.
9. Select the Settings Button, then the Lap Timing option and navigate to the Track Settings. The unit will display the currently selected track based on the GPS location. If there are multiple layouts available, you can press the Select button to scroll through the different options. It is important that you make sure that the correct circuit has been selected!


1. Press the Exit Button to return to the Lap Timing screen.

2. Select which Lap Timing display you would like to use (Main or Basic) by using the Forward and Back arrows on the bottom right of the screen or by swiping left or right.


1. The unit is now ready to display live Lap Timing values.

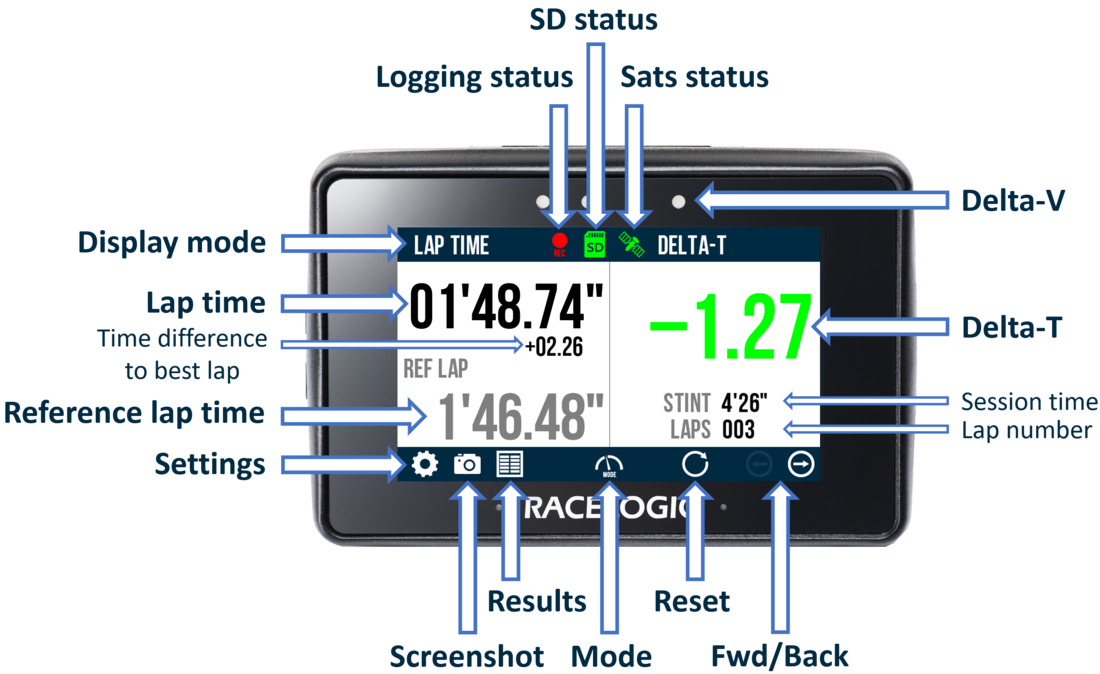

Main Screen:

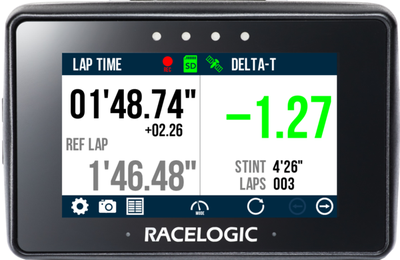

• Once the start/finish line is crossed, Performance Box Touch will automatically begin to create a reference lap. When a reference lap is being created, a 'Creating a Reference Lap' message is displayed within the Delta-T section and the reference lap section will show a rolling lap time. The LEDs will also illuminate blue during the creation process. The reference lap will update if a faster lap is achieved unless the Reference Lap has been Fixed within the Settings.

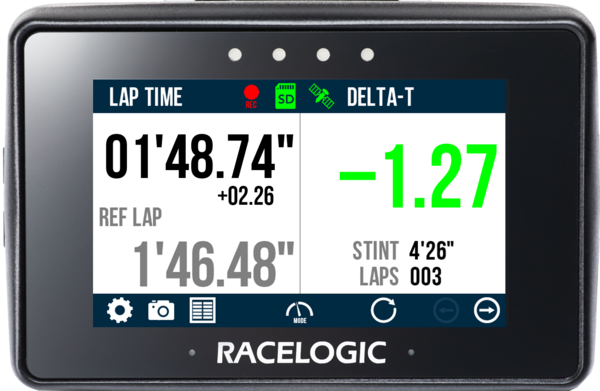

• Once a reference lap is created, the unit presents a live difference in lap time (Delta-T) between the current lap time and the stored and active reference lap at the current location on the track.

• The 4 LEDs at the top of the screen provide a live reference lap speed comparison (Delta-V), varying in colour between green and red depending on whether you are travelling faster or slower than the reference lap at the current location on the track. You can change the settings for this in the Delta-V Range settings.

Basic Screen:

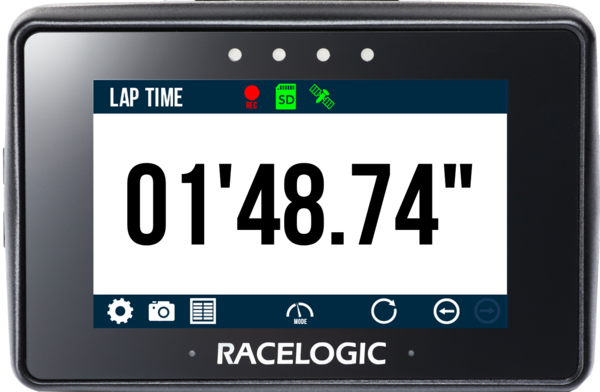

• Performance Box Touch will display the current live lap time. When a new lap starts, the previous lap time will be displayed for 3 seconds before reverting to displaying the current live lap time. You can just display the previous lap time by Disabling the Rolling Lap Time.


13. You can override the detected start/finish line by manually setting a Start/Finish Line or just a Finish Line.

14. Performance Box Touch can also start lap timing from a Standing Start if you have set a separate Finish Line, this is particularly suitable for sprint style events.

15. By default, Performance Box Touch will automatically start recording when detecting a speed of over 0.5 km/h. You can change this in the General Settings.

16. If you tap on the SD Card Icon when it is green, you can manually start or stop the data logging, overriding the Configured Logging Strategy.


17. The Record Icon will show when the unit is logging data to the SD card.

    If you have come to a stop, but the Record Icon is still on, tap the SD Card Icon to stop the logging before you remove the card from the unit.

    Sometimes, due to poor satellite visibility, for example in a garage or close to a building, the box may start recording even if the car is stationary. Always check the Record Icon before you eject the card.


    IMPORTANT
    You must not remove the SD card when the Record Icon is on as you may lose data.

Note: If for some reason the SD card is removed while still recording, you may have to repair it on a PC before you can use it again.

18. You can take a screenshot of the displayed content at any time by pressing the Screenshot Button.


19. You can reset lap timing data, lap time history and the reference lap, by pressing the Reset Button.


20. When you have finished, you can view a history of the lap results by pressing the Results Button.

You can find more information on the Lap Timing Mode here.

1. Performance Box Touch V1 has an internal patch antenna. This means that where the unit has a clear view of the sky without any interference, an additional antenna is not required in most circumstances.

   However, if it is required, you should mount the external GPS antenna (RLACS284) in the centre of the roof of the vehicle, away from roof bars and other antennas. You can find more information about how to mount your external antenna here.

1. If you are using an external antenna, connect it to the Performance Box Touch.

2. Connect the Battery (RLACS290) if required. You can find more information about the battery here.

3. Connect the Swivel Neck Richter Suction Mount (RLACS277) to the rear of the unit (or the battery if applicable) and attach the suction mount to the vehicle's windscreen. You can find more information about the mounting of the unit here.

4. Connect the power via the Power socket, or if you are using the battery independent of a power source, press and hold the Power button on the battery for a few seconds.

5. Insert the SD card into the SD card slot. The SD Card Icon should display in green as long as the card has available space.

8. When the unit has booted, select the Mode Button and press SPEED if it is not already selected.

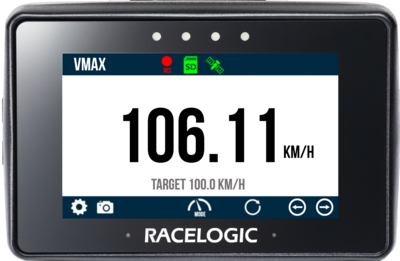

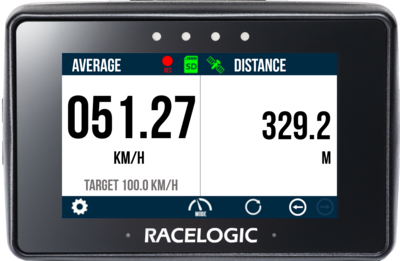

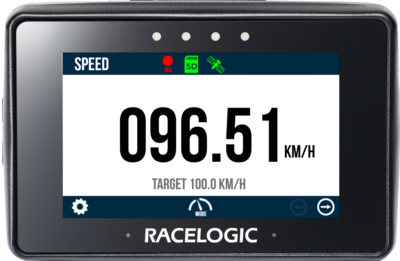

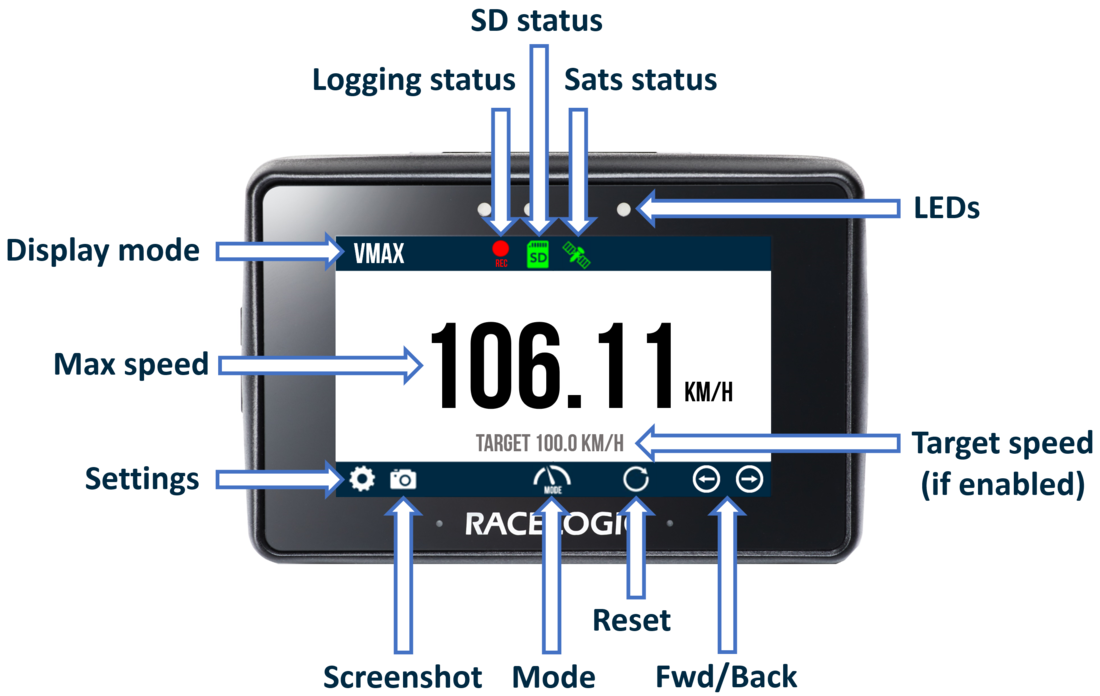

1. Select the speed display you would like to use (Speed, VMAX and Average Speed) by selecting the Forward and Back arrows on the bottom right of the screen or by swiping left or right.


1. If you would like to set a Target Speed which will display on the screen and give an audible and/or visual alert when the speed is met, select the Settings Button, then the Speed option and enter the required value in the Settings.


10. Press the Exit Button to return to the Speed screen.

11. Take the vehicle outside and wait for the VBOX Touch to gain satellite lock. The Satellite Icon should display as solid green.

    Note: The first time you use the unit, it may take up to 10 to 15 minutes to fully acquire satellites. After this, it will usually take 1 to 2 minutes for the unit to acquire satellite lock.


12. The unit is now ready to display live Speed values.

13. By default, Performance Box Touch will automatically start recording when it detects moving in a speed of 0.5 km/h or more. You can change this in the General Settings.

14. By tapping the SD Card Icon when it is green you can manually start or stop the logging of data and override the Configured Logging Strategy.


15. The Record Icon will show when the unit is logging data to the SD card.

    If you have come to a stop, but the Record Icon is still on, you must press the SD Card Icon to stop the logging before you can remove the SD card.

    Sometimes, due to poor satellite visibility, for example in a garage or close to a building, the box may start recording even if the car is stationary. Always check that the Record Icon is not red before you eject the card.


    IMPORTANT
    The SD card should not be removed while the Record Icon is red as it may cause you to lose data.

    Note: If the SD card is removed while the box is still recording, you may need to repair it on a PC before you can use it again.


16. You can take a screenshot of what is displayed on the screen at any time by pressing the Screenshot Button.


17. You can reset all test results shown on the current screen by pressing the Reset Button.


18. When you have finished your testing, you can view your completed test results by pressing the Results Button.

You can find more information on the Speed Mode here.
