Please register your VBOX 3iS Single Antenna RTK unit so that Racelogic can continue to provide you with notifications about the latest software releases and firmware upgrades for your Racelogic product and offer technical support.
Register your device here.
| Product Code | Quantity | Description |
|---|---|---|
| VB3iSSR-V1 | 1 | VBOX 3iS 100 Hz GNSS System with Inbuilt IMU and RTK - Unit only |
| RLACS156 | 1 | GPS / GLONASS Low Profile Antenna - 4 m |
| RLCAB128 / RLCAB129 / RLCAB130 | 1 | Cable Loom (each option is for a specific use, as selected when ordered) |
| RLACS106 | 1 | VBOX Plastic Carry Case |
| RLCAB001 | 1 | Lemo 5W Plug - 9W D Socket - 2 m cable (Serial Configuration) |
| RLCALUKAS | 1 | Certificate of Calibration - UKAS Accredited Calibration Laboratory No. 21354 |
Note: You may have to order additional cables separately.
VBOX 3iS units are powered via the POWER IN lead or the CAN OUT + POWER lead on the supplied loom. You can power VBOX 3iS units from a wide range of voltage sources.
IMPORTANT
The maximum operating voltage input must not exceed 30 V DC. Failure to observe this could result in damage to the VBOX unit.
VBOX 3iS has been designed to generate as little heat as possible and it has a wide operating temperature range. It is, however, good practice to mount it in a position where it has sufficient airflow around the case.

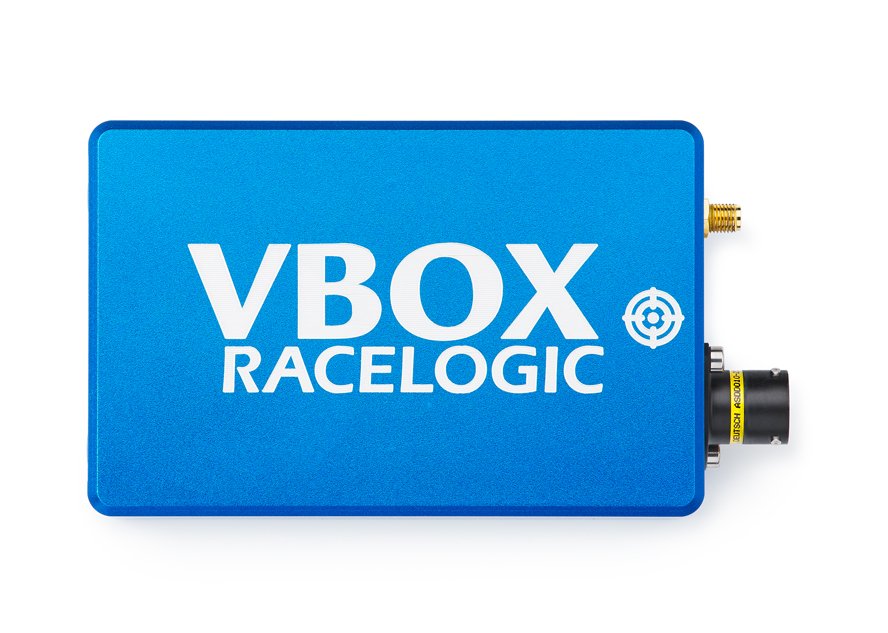

The reference point on the unit when you need to measure offsets and distances.
