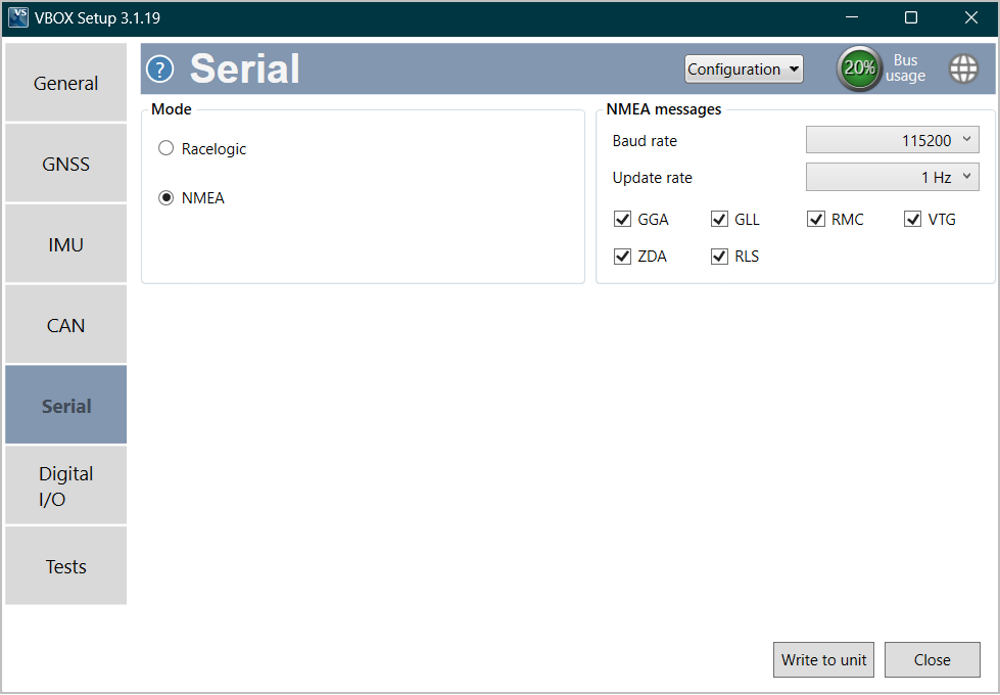

In the Serial menu in VBOX Setup, connected to a VBOX 3iS Single Antenna (v1), you can configure the format, content and data rate of the serial stream transmitted by the VBOX unit.
This selects which format the VBOX unit will use to output Serial data.
Racelogic - For Serial communication with other Racelogic products (not available if ADAS mode is enabled).
NMEA - For user defined NMEA message output (not available if ADAS mode is enabled).

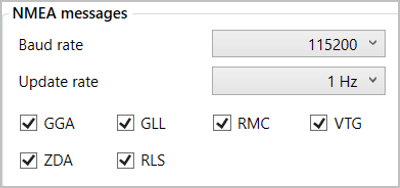

If the NMEA message format is selected, the following options become available:
| Baud rate | The required serial baud rate can be selected from this drop down menu, selectable from 4800 – 115200 kbit/s (115200 kbit/s by default). |
| Update rate | The update rate of the NMEA messages can be changed using this drop down list, selectable from 1 –100 Hz (1 Hz by default). |
| Message selection | NMEA messages can be selected and deselected for transmission by checking and un-checking the boxes next to each message type. |
