- You can access the menu by pressing the OK button.
- Use the Up and Down arrows to navigate through the menu and press the OK button to enter a submenu or change a setting.
- When editing a setting, the Up and Down buttons will let you scroll through the available options for that setting and the OK button will confirm your selection.
- Use the Back button to exit a setting.

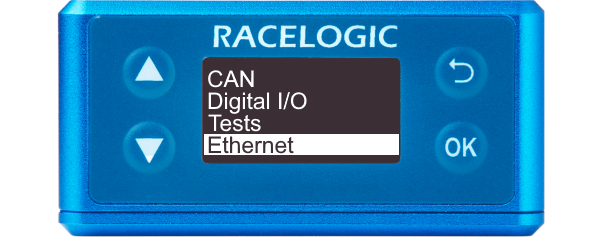

You can use this menu to configure the Ethernet on VBOX Omega.
You can use this menu to configure the Ethernet on VBOX Omega.

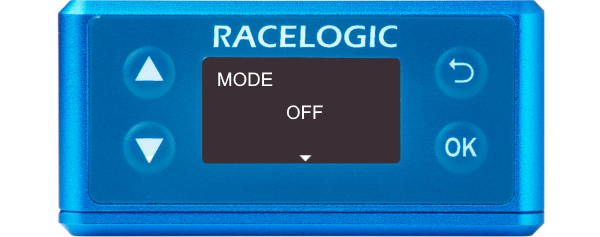

Ethernet is switched off.
Ethernet is switched off.
This setting outputs Racelogic proprietary ethernet protocol at the same update rate as CAN output.
This setting outputs Racelogic proprietary ethernet protocol at the same update rate as CAN output.
Note: Setting this mode will enable all CAN IDs and set CAN Output Baud Rate to 1Mbit/s.
This is the IP address of your VBOX Omega unit. In this setting, you can change the IP address, which is stored in the unit's memory.
This is the IP address of your VBOX Omega unit. In this setting, you can change the IP address, which is stored in the unit's memory.
This is the IP address of the ethernet device that you are transmitting to. It is a static IP that you can change and that is stored in the unit's memory.
This is the IP address of the ethernet device that you are transmitting to. It is a static IP that you can change and that is stored in the unit's memory.
