Moving Base radios are used to transmit and receive corrections from VBOX 3i RTK units in a Moving Base setup.

A Moving Base server radio is connected to a Moving Base VBOX unit and transmits the RTK correction messages to client radios in target vehicles. There is no limit to the number of receivers that can get corrections from the server radio.

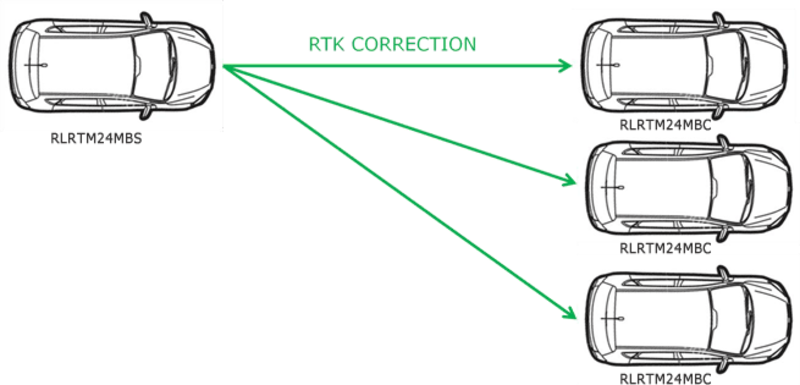

Diagram demonstrating communication between RLRTM24MBS and 3 client RLRTM24MBC radios

Moving Base Telemetry Radio Options #

RLRTMXB2 – VBOX client/server radio for Moving Base (Worldwide)
RLRTM24MBC – VBOX client radio for Moving Base (EU Spec)
RLRTM24MBS – VBOX server radio for Moving Base (EU Spec)
RLRTM24MBCJP – VBOX client radio for Moving Base (Japan Spec)
RLRTM24MBSJP – VBOX server radio for Moving Base (Japan Spec)
RLRTM24MBCU – VBOX client radio for Moving Base (Rest of World Spec)
RLRTM24MBSU – VBOX server radio for Moving Base (Rest of World Spec)
