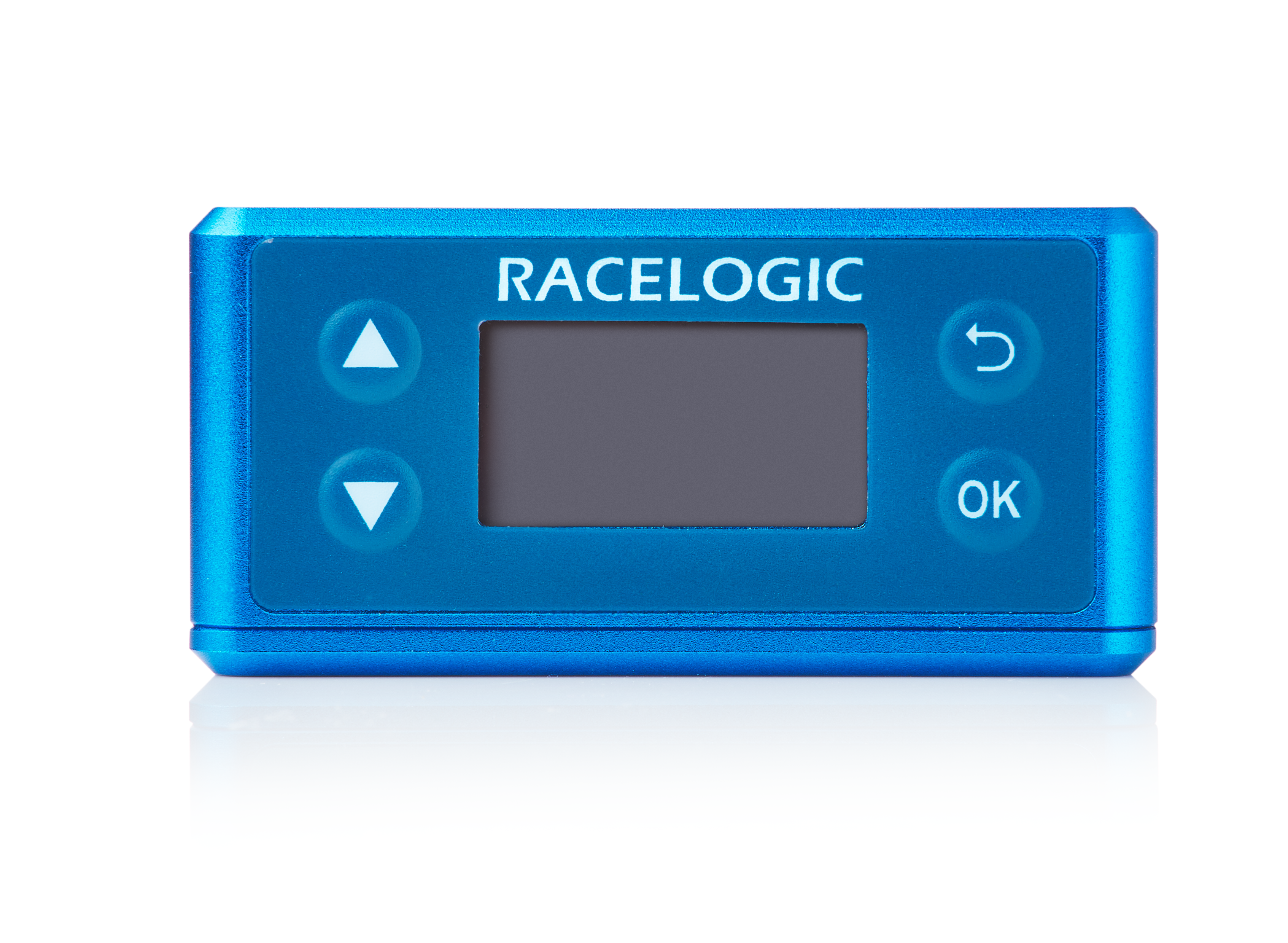

When you purchase a VBOX Omega 100 Hz Inertial Navigation System (RLVBOMEGA-V1), you will find the following in the box:
| Product Code | Quantity | Description |
|---|---|---|
| VBOMEGA-V1 | 1 | VBOX Omega (RTK GNSS-aided Inertial Navigation System) |
| RLACS308 | 1 | GNSS antenna with SMA cable (3 m) |
| RLCAB001 | 1 | Lemo 5 W plug - 9 W Socket - 2 m (serial configuration) |
| RLCAB163 | 1 | Deutsch 23 W ASDD to multiple connector interface cable |
| RLCAB010LE | 1 | Lemo 2W Plug - Cigar Plug - 2m cable (Power) Screened |
| RLACS106 | 1 | VBOX Plastic Carry Case |
| RLCALUKAS100 | 1 | Certifiate of Calibration |
VBOX Omega units are powered via the POWER IN lead or the CAN OUT + POWER lead on the supplied loom. You can power VBOX Omega units from a wide range of voltage sources.
IMPORTANT
The maximum operating voltage input must not exceed 30 V DC. Failure to observe this could result in damage to the VBOX Omega unit.

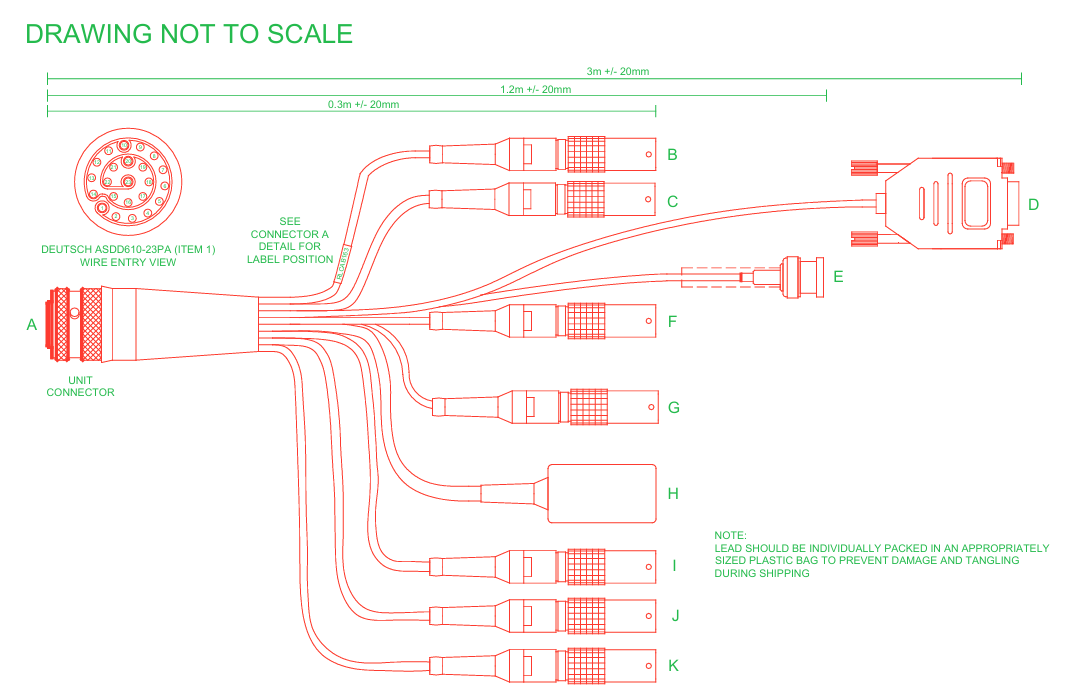

| Cable | Function | Cable | Function |
|---|---|---|---|
| A | UNIT CONNECTOR | G | CAN IN |
| B | SERIAL | H | ETHERNET |
| C | POWER IN | I | CAN OUT + POWER |
| D | CAN OUT | J | AUX |
| E | DIGITAL OUT | K | DGPS |
| F | DIGITAL IN |

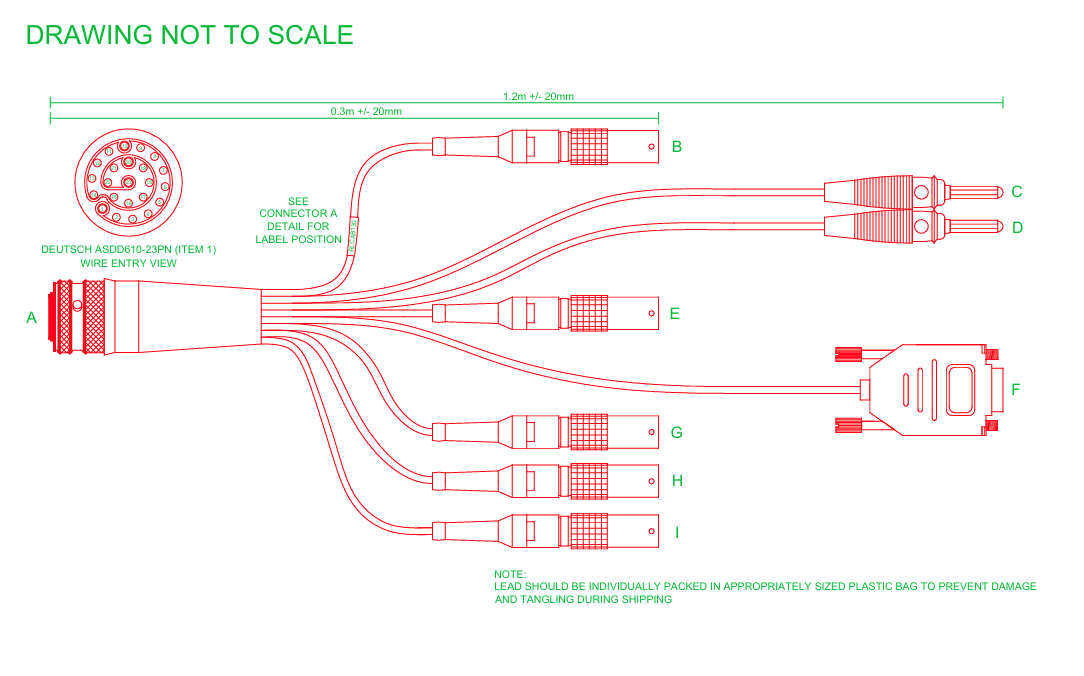

Note: Some prototype VBOX Omega units were supplied with RLCAB130 cable looms.

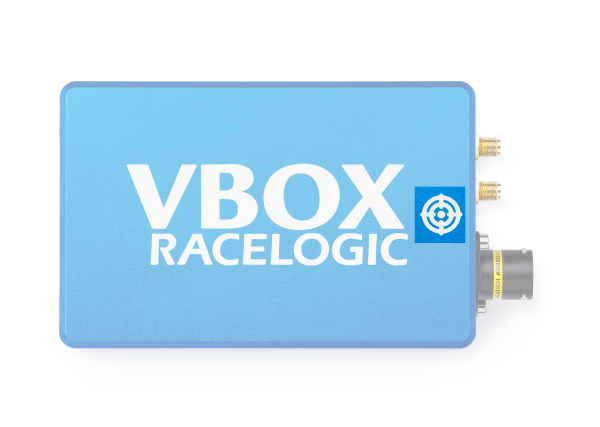

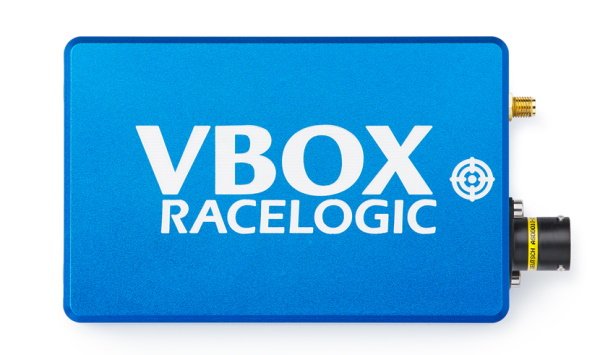

The reference point on the unit, as highlighted below, is to be used when you need to measure offsets and distances.
