Pinouts

Updated on Apr 24, 2026

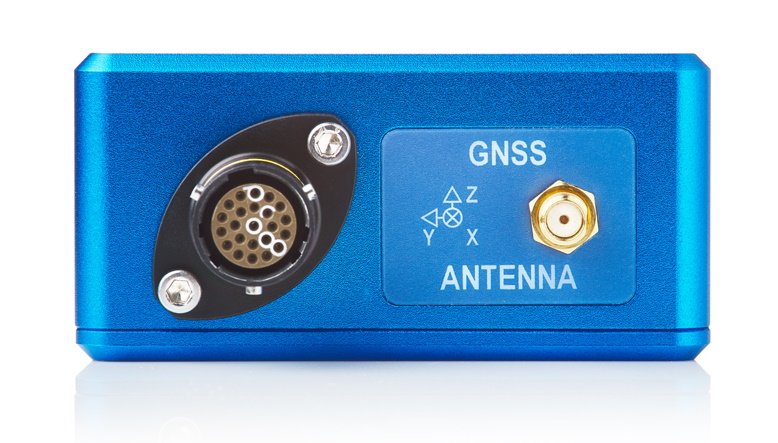

Photograph of the connectors on a VBOX Omega.

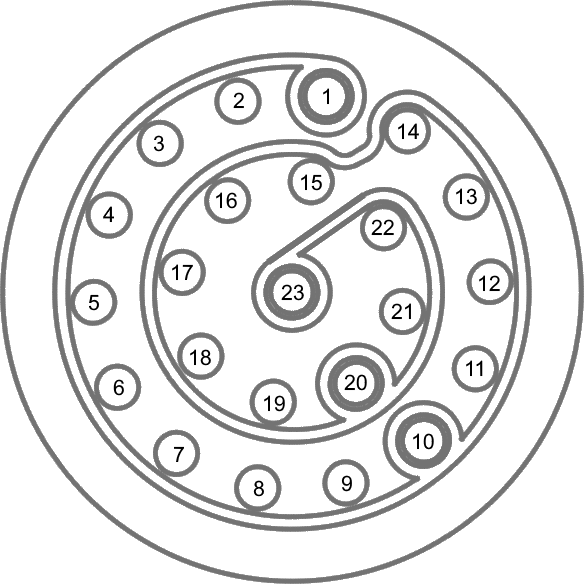

Pinout drawing of the RLCAB163 connector, rotated to match the unit connector.
PINI/OFunction
1-Aux RS232 Tx
2-Aux RS232 Rx
3I/OEthernet Tx+
4I/OEthernet Tx-
5I/OEthernet Rx-
6I/OEthernet Rx+
7ICAN in - low
8ICAN in - high
9OCAN out - high
10OCAN out - low
11IDigital in
12OPower return
13IPower in
14ODigital out
15-Ground (unit configuration interface)
16IRS232 Rx data (DGPS corrections interface)
17IRS232 Tx data (DGPS corrections interface)
18IRS232 Rx data (Serial -- ADAS config)
19IRS232 Tx data (Serial -- ADAS config)
20-Ground
21OPower out (CAN and Power out)
22OPower out (Aux)
23I/O1PPS (Aux)


Drawing of the Antenna connector.
PINI/OFunction
Centre-RF Signal / Power for active antenna
Chassis-Ground
