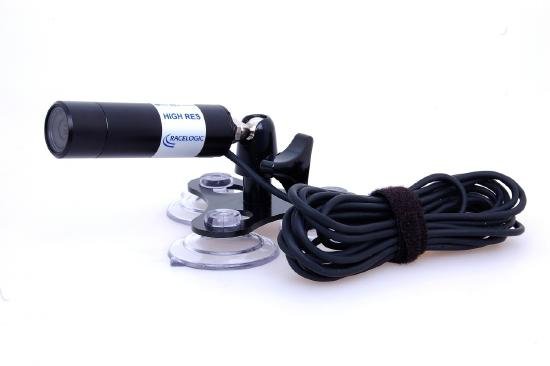

| Description | High Resolution (RLACS134xx) |
|---|---|
| Image sensor | 1/3” Super HAD CCD |
| Effective pixels | NTSC: 768 x 494 (h x v) PAL: 752 x 582 (h x v) |
| Min illumination | 0.2 Lux at F2.0 |
| H. resolution | 560 TV Lines |
| Synchronising system | Internal |
| Scanning system | NTSC, 525 lines, PAL 625 lines 2:1 Interlaced |
| Video output | 1.0Vp-p Composite. 75 Ohms |
| S/N ratio | More than 50 dB (AGC Off) |
| Gain control | -1 dB~3.1 dB Auto |
| Gamma correction | ɣ = 0.45 |
| Shutter speed | NTSC: 1/60 ~ 1/1000,000 sec PAL: 1/50~1/100,000 sec |
| White balance | Automatic (AWB) |
| Smear effect | 0.005 % |
| MTBF | 80,000 hours |
| Lens standard | 3.6 mm (92°) |
| Power source | 12 V DC (9 V~20 V) |
| Operating current | 130 mA w/regulated 12 V DC in |
| Operating temperature | -10 °C ~ 50 °C (14 °F – 122 °F) |
| Measurement | 21 x 73 mm (d x l) |
| Weight | 180 g (approximate) |
| IP rating | IP67 |

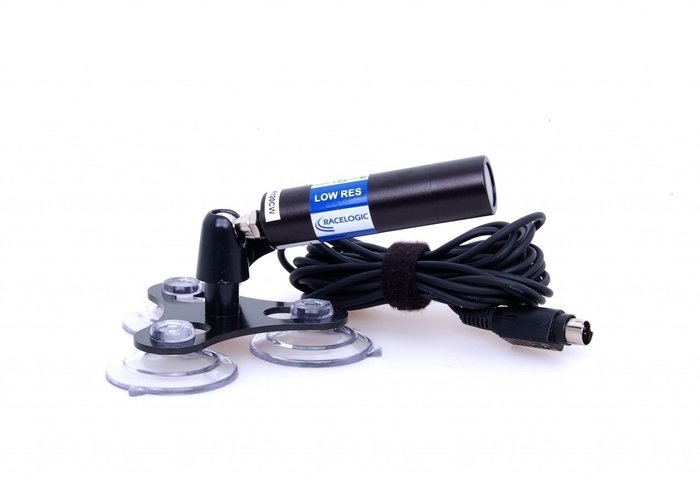

| Description | Low Resolution (RLACS135xx) |
|---|---|
| Image sensor | 1/3” Sony CCD |
| Effective pixels | NTSC: 510 x 492 (h x v) PAL: 500 x 582 (h x v) |
| Min illumination | 0.5 Lux |
| Resolution | 420 TV Lines |
| Synchronising system | Internal |
| Scanning system | NTSC, 525 lines, 60Field/Sec PAL 625 lines, 50 Field/Sec Interlaced |
| Video output | 1Vp-p 75 Ohms, Negative |
| S/N ratio | More than 48 dB (AGC Off) |
| Gamma correction | ɣ = 0.45 |
| Shutter speed | NTSC: 1/60 ~ 1/1000,000 sec PAL: 1/50~1/100,000 sec |
| White balance | Automatic (AWB) |
| B.L.C | Automatic |
| Measurement | 20 x 77 mm (d x l) |
| IP rating | IP67 |
RLACS116 - Camera Ring Clamp Mount
Forward facing (high res) camera mount
RLACS287 - Windscreen Suction Mount
This suction mount is also provided with OLED Displays.
NOTE
RLACS116 is also required to mount the high resolution Video VBOX cameras.

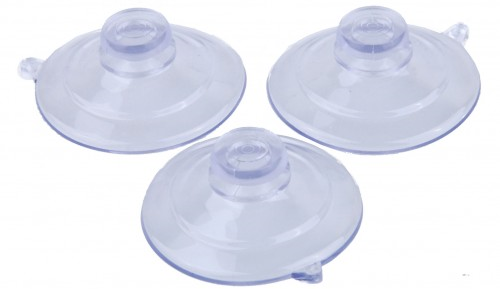

DBSUCSETX3 - Mounting Cradle Suction Cups
A set of 3 suction cups for the RLACS287 Suction Camera Mount.

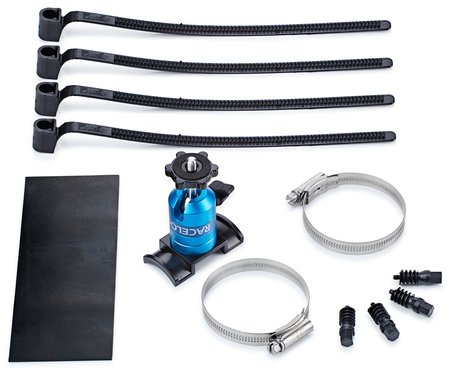

This roll cage mount has a solid aluminium body, connected to a curved mounting plate that can be secured onto the roll bar with either two jubilee clips or plastic worm drive hose clips (4 supplied) large enough accommodate an FIA-spec bar; also in the kit is a strip of protective rubber to stop the roll bar from being scratched.
NOTE
RLACS116 is also required to mount the high resolution Video VBOX cameras.

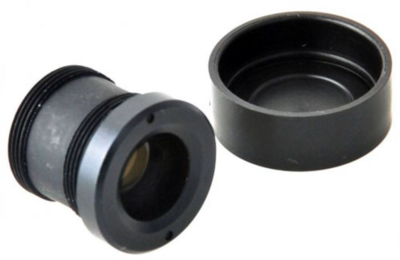

MB21HQX-92L - 92° Lens for High Res Camera
Supplied with the high resolution cameras as standard. Allows a wider field of view than the 54° lens. Notes on fitting and focusing the lens can be found here.

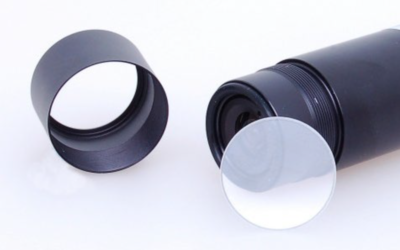

MB21HQXGLASS - Glass Lens Cover for High Res Camera
Replacement glass lens cover for the Video VBOX high resolution cameras.

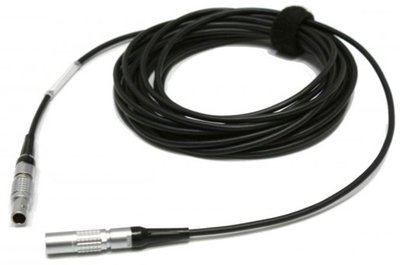

RLCAB109 - Camera Extension Cable for Video VBOX Pro Cameras
Lemo extension cable available in 2 m, 5 m, 10 m, 15 m and 27 m lengths.

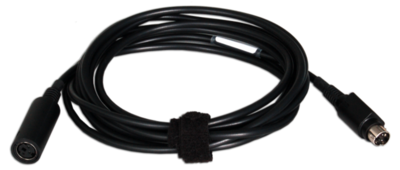

RLCAB099 - Camera Extension Cable for Video VBOX Lite Cameras
Mini-DIN extension cable available in 3 m, 6 m and 10 m lengths.
All of these items can be purchased from the Video VBOX section of our online store.
| Description | Product Code |
|---|---|

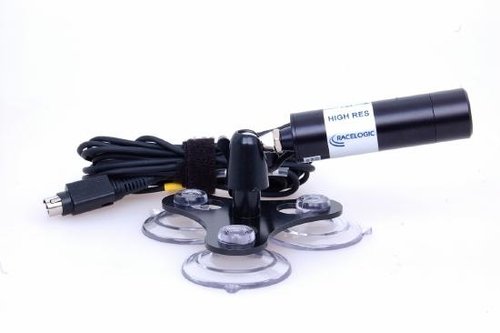

| High res camera kit - PAL | RLACS134 |
| High res camera only - PAL | ACS134 |
| High res camera kit - NTSC | RLACS134N |
| High res camera only - NTSC | ACS143N |
| Description | Product Code |
|---|---|
| Low res camera kit - PAL | RLACS135 |
| Low res camera only - PAL | ACS135 |
| Low res camera kit - NTSC | RLACS135N |
| Low res camera only - NTSC | ACS135N |
| Description | Product Code |
|---|---|

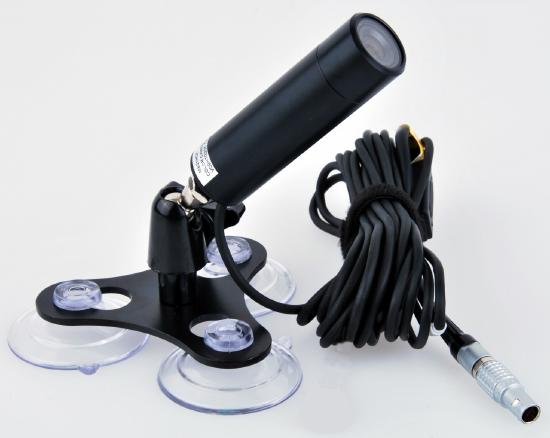

| High res camera kit - PAL | RLACS140 |
| High res camera kit – PAL - 5 meter cable | RLACS140-5 |
| High res camera only - PAL | ACS140 |
| High res camera kit - NTSC | RLACS140N |
| High res camera kit – NTSC - 5 meter cable | RLACS140N-5 |
| High res camera only - NTSC | ACS140N |
| Description | Product Code |
|---|---|
| High res camera kit - PAL | RLACS134H |
| High res camera only - PAL | ACS134H |
| High res camera kit - NTSC | RLACS134HN |
| High res camera only - NTSC | ACS134HN |
| Description | Product Code |
|---|---|
| Low res camera kit - PAL | RLACS135H |
| Low res camera only - PAL | ACS135H |
| Low res camera kit - NTSC | RLACS135HN |
| Low res camera only - NTSC | ACS135HN |
| Problem | Actions |
|---|---|
| Nothing appears on the screen | Please check the power connection. Please check the video signal line connection. |
| The video image is not clear | Please check is the lens and the outer glass is clean – Dirt or fingerprints on the lens can affect the image blooming or reflecting. Gently wipe away any dirt or fingerprints from the lens or glass with a soft cloth. Please check if the camera is exposed directly toward a bright light, sunlight, or reflective surface. |
| The screen is dark | Please check the power supply is within specification. |
| The cameras surface is hot and black stripes appear on the screen | Please check that the power supply is regulated and within specification. |
| The screen is flickering | Please check if the camera is facing directly towards sunlight or fluorescent light. |
