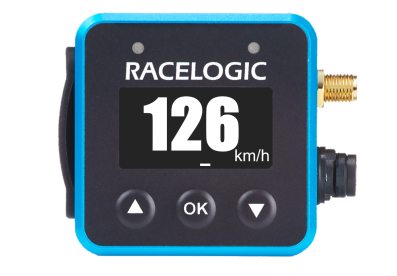

If the VBOX Mini LapTimer is logging, you will see a scrolling bar across the bottom of the screen (except in Predictive Lap timing mode).
To start or stop the data logging on VBOX Mini LapTimer, press the OK button when in Speed Display mode.
If the VBOX Mini LapTimer is logging, you will see a scrolling bar across the bottom of the screen (except in Predictive Lap timing mode).
To start or stop the data logging on VBOX Mini LapTimer, press the OK button when in Speed Display mode.
The VBOX Mini LapTimer has several different display modes, which you can scroll through with the up and down buttons on your device.
Note that the data displayed on each screen is always calculated by the device at all times, even if you choose not to display it.
Click on the name of each mode to find relevant setup information.

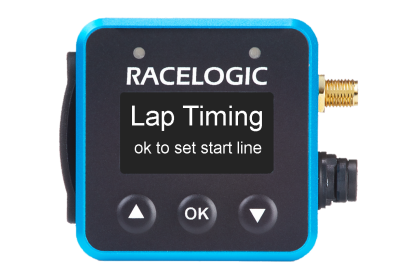

Before you can use this mode, you need to set a start/finish line. Make sure that you have selected a track layout through the main menu or set a start line manually.

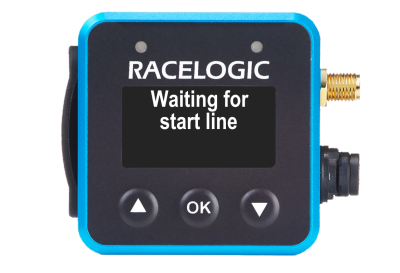

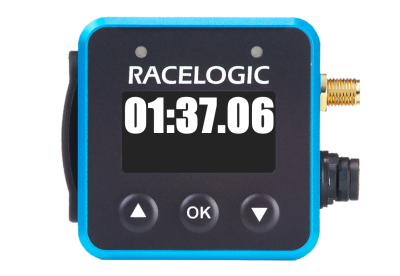

Before you cross the start line, the screen will show Waiting for start line and the distance from your current location to it.
Before you cross the start line, the screen will show Waiting for start line and the distance from your current location to it.

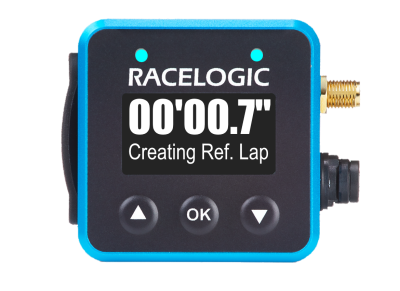

When you cross the start line to begin your first lap, the VBOX Mini OLED will begin to create a reference lap.
When you cross the start line to begin your first lap, the VBOX Mini OLED will begin to create a reference lap.

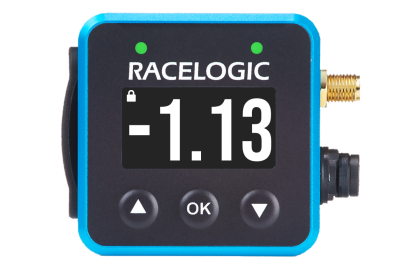

When you complete your first lap, the Mini OLED will start comparing your current lap to your best lap (reference lap) and display the live delta time on the screen.
When you complete your first lap, the Mini OLED will start comparing your current lap to your best lap (reference lap) and display the live delta time on the screen.
The reference lap will be replaced with any subsequent quicker lap time. However, you can fix a reference lap to prevent faster lap times from replacing it.

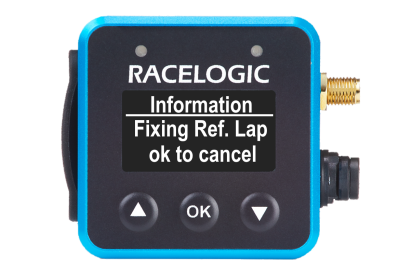

Fix the comparison lap time by pressing the OK button at any time during your lap. Pressing the OK button will either fix the lap you are currently driving or fix a lap saved in the memory. You can choose which one your Mini LapTimer will use under Fixed Lap Mode in the Predictive Settings.
The reference lap will be replaced with any subsequent quicker lap time. However, you can fix a reference lap to prevent faster lap times from replacing it.
Fix the comparison lap time by pressing the OK button at any time during your lap. Pressing the OK button will either fix the lap you are currently driving or fix a lap saved in the memory. You can choose which one your Mini LapTimer will use under Fixed Lap Mode in the Predictive Settings.
- If you fix a stored lap the icon will appear instantly.
- If you fix the current lap, the icon will appear when the lap you are currently driving has been completed.
If you power-cycle the unit, clear the lap timing data or reset the start/finish, the fixed reference lap will be removed. If you wish to retain a fixed reference lap, make sure that the lap is saved to the SD card. You can then load it into the device when you need it.
If you press and hold the OK button for 4 seconds when in this mode, you will clear the stored reference lap and clear all lap timing data.
NOTE
When you have fixed a reference lap, you will see a message confirming your selection on the screen and you will see a padlock icon in the top left corner.
Save Reference Lap

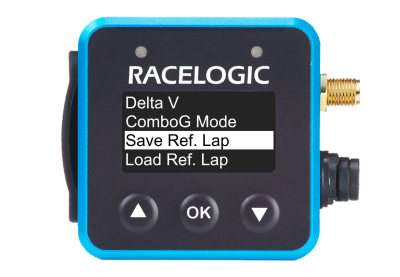

This feature allows you to save a reference lap for future use. Insert an SD card into the VBOX Mini LapTimer and use the menu options shown below.
Once you have selected this, the following messages show you that it has been saved successfully. This will be stored on the SD card as LAP.REF in the ‘Data’ folder.
This feature allows you to save a reference lap for future use. Insert an SD card into the VBOX Mini LapTimer and use the menu options shown below.
Once you have selected this, the following messages show you that it has been saved successfully. This will be stored on the SD card as LAP.REF in the ‘Data’ folder.
NOTE
The vehicle must be stationary to make this transfer.
Load Reference Lap
To load a reference lap file stored from a previous session, you put the desired file onto an SD card and load the card into the VBOX Mini LapTimer.
The file can have any name, however, it must be saved in the Data folder on the SD card and only one .REF file can be present.

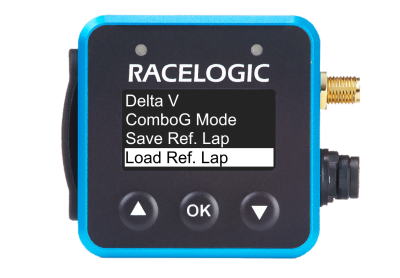

Go to Settings → Predictive Lap Timing Menu → Load Ref. Lap → OK.
Reference laps will be reset either when you set a new start/finish is set, or if you select the ‘reset lap timing data’ option from the lap timing menu in the main menu.
You can create a reference lap with the Circuit Tools software as described here.
To load a reference lap file stored from a previous session, you put the desired file onto an SD card and load the card into the VBOX Mini LapTimer.
The file can have any name, however, it must be saved in the Data folder on the SD card and only one .REF file can be present.
Go to Settings → Predictive Lap Timing Menu → Load Ref. Lap → OK.
Reference laps will be reset either when you set a new start/finish is set, or if you select the ‘reset lap timing data’ option from the lap timing menu in the main menu.
You can create a reference lap with the Circuit Tools software as described here.
NOTE
The vehicle must be stationary to make this transfer.
Live Timing
The main predictive screen shows a continuously updated number with the +/ - to the previous lap. When a lap is completed, it will give a final lap time and total time difference to the reference lap. If you achieve a faster time than the reference, it will show a negative time.
The main predictive screen shows a continuously updated number with the +/ - to the previous lap. When a lap is completed, it will give a final lap time and total time difference to the reference lap. If you achieve a faster time than the reference, it will show a negative time.
All lap times and split times are interpolated to 0.01-second resolution.
In this mode, the screen can display either a live rolling lap time or a static last lap time and the lap count. You can change this in the Lap Timing Menu.
All lap times and split times are interpolated to 0.01-second resolution.
In this mode, the screen can display either a live rolling lap time or a static last lap time and the lap count. You can change this in the Lap Timing Menu.
Fastest Lap
The difference between the new lap time and the best lap time will be shown with a + or – sign. A ‘–’ is shown when a faster than best is achieved and a ‘+’ is shown for a slower than best.
Split Line Display
If you have set up split lines in the Lap Timing menu, the Mini LapTimer will display split times for 2-20 seconds when you cross the split line. See Display Time to find the setup info.
Setting a Start/Finish Line
You can also set a new start/finish line while using the Lap Timing screen by pressing the OK button. If you do this by mistake, you can cancel the action by pressing the Down button within 5 seconds.
If you also require split lines or a separate finish, use the ‘set start and splits’ option in the Lap Timing Menu.
You can also set a new start/finish line while using the Lap Timing screen by pressing the OK button. If you do this by mistake, you can cancel the action by pressing the Down button within 5 seconds.
If you also require split lines or a separate finish, use the ‘set start and splits’ option in the Lap Timing Menu.
NOTE
The vehicle must be moving >10 km/h before you can set a Start/Finish Line.

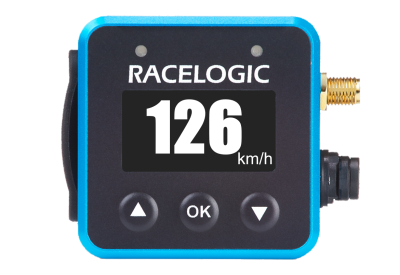

In speed mode, the screen will display a large clear speed value with up to 2 decimal places. You can set the speed to display in kph, mph or knots. You can adjust the number of decimal places displayed. For more information on how to change these settings, see here.
In speed mode, the screen will display a large clear speed value with up to 2 decimal places. You can set the speed to display in kph, mph or knots. You can adjust the number of decimal places displayed. For more information on how to change these settings, see here.
NOTE
To start or stop data logging on the VBOX Mini LapTimer, press the OK button when in Speed Display mode.

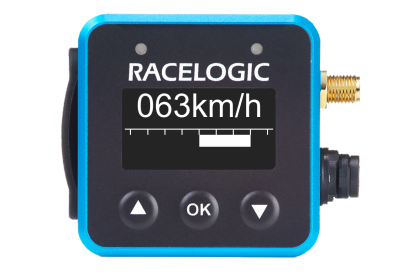

In the speed bar mode, the screen will show a set centre speed with a bar graph indicating the speed between the set speed and the actual speed.
In the speed bar mode, the screen will show a set centre speed with a bar graph indicating the speed between the set speed and the actual speed.
Bar Graph Settings

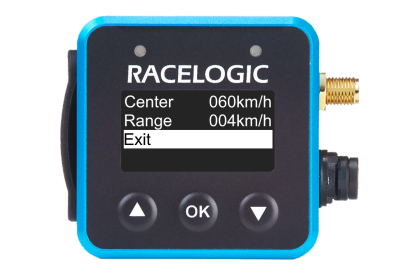

Press the OK button, to set the desired speed and configure the speed display range of the bar graph.
Press the OK button, to set the desired speed and configure the speed display range of the bar graph.

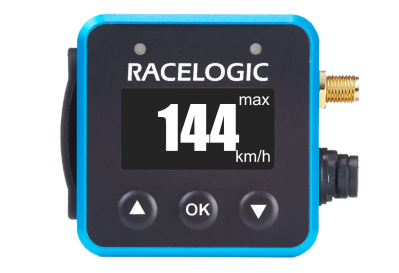

In max speed mode, the screen will show the highest achieved speed value to 0, 1 or 2 decimal places.
NOTE
If you press the OK button the unit will reset the displayed maximum speed value.
In max speed mode, the screen will show the highest achieved speed value to 0, 1 or 2 decimal places.
NOTE
If you press the OK button the unit will reset the displayed maximum speed value.

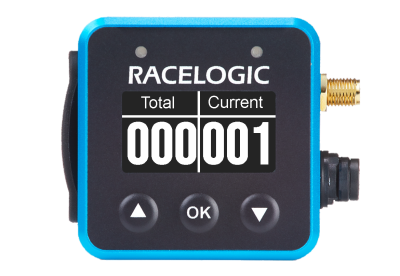

The lap count screen will display 2 counters. On the left-hand side of the screen, you can see the total lap count – this counter can only be reset by a power cycle of the VBOX Mini LapTimer. On the right-hand side of the screen, you can see the current laps. You can reset this by removing the logging media from the VBOX Mini LapTimer.
The lap count screen will display 2 counters. On the left-hand side of the screen, you can see the total lap count – this counter can only be reset by a power cycle of the VBOX Mini LapTimer. On the right-hand side of the screen, you can see the current laps. You can reset this by removing the logging media from the VBOX Mini LapTimer.

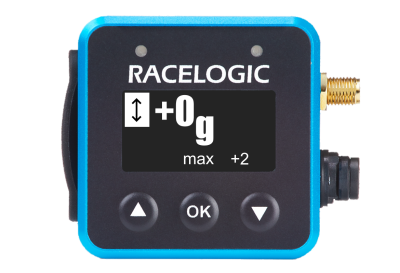

This screen displays the current longitudinal g in the vehicle as a live display as well as the maximum longitudinal g reached. This helps the driver push the vehicle that little bit harder when braking.
NOTE
If you press the OK button, the unit will reset the displayed maximum g value (Peak g).
This screen displays the current longitudinal g in the vehicle as a live display as well as the maximum longitudinal g reached. This helps the driver push the vehicle that little bit harder when braking.
NOTE
If you press the OK button, the unit will reset the displayed maximum g value (Peak g).
Longitudinal g Bar Display

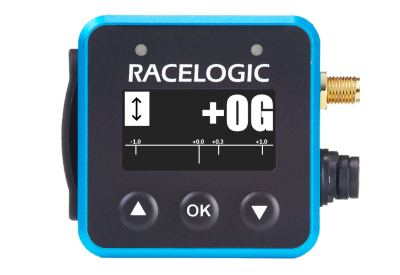

This screen shows a target, maximum, and minimum range of longitudinal g on a bar graph display.
Press the OK button, to alter the maximum (+3.0 g) and minimum (-3.0 g) values labelled on the graph.
In the same menu, you can set the target g in the same menu (between -3.0 to +3.0 g) to help you reach the desired g when cornering and select to have an inverted target g labelled on the graph.
This screen shows a target, maximum, and minimum range of longitudinal g on a bar graph display.
Press the OK button, to alter the maximum (+3.0 g) and minimum (-3.0 g) values labelled on the graph.
In the same menu, you can set the target g in the same menu (between -3.0 to +3.0 g) to help you reach the desired g when cornering and select to have an inverted target g labelled on the graph.

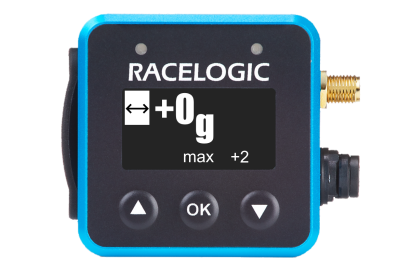

This screen displays the current lateral g in the vehicle as a live display as well as the maximum lateral g reached. This helps the driver push the vehicle that little bit harder in corners.
NOTE
Press the OK button to make the unit reset the displayed maximum g value (Peak g).
This screen displays the current lateral g in the vehicle as a live display as well as the maximum lateral g reached. This helps the driver push the vehicle that little bit harder in corners.
NOTE
Press the OK button to make the unit reset the displayed maximum g value (Peak g).
Lateral g Bar Display

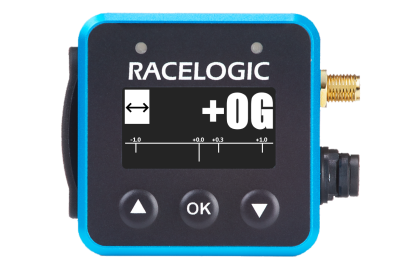

This screen shows a target, maximum, and minimum range of lateral g on a bar graph display.
Press the OK button, to alter the maximum (+3.0 g) and minimum (-3.0 g) values labelled on the graph.
In the same menu, you can set the target g (between -3.0 to +3.0 g) to help you reach the desired g when cornering and select to have an inverted target g labelled on the graph.
This screen shows a target, maximum, and minimum range of lateral g on a bar graph display.
Press the OK button, to alter the maximum (+3.0 g) and minimum (-3.0 g) values labelled on the graph.
In the same menu, you can set the target g (between -3.0 to +3.0 g) to help you reach the desired g when cornering and select to have an inverted target g labelled on the graph.
