VBOX Pit Lane Timers provide instant feedback to help optimise the time spent in the pit lane and to avoid pit stop penalties.
Once the pit lane entry point is crossed, the Pit Lane Timer will display the current speed until the car stops in the pit box. It will then start a countdown to when it is time to leave the pit box.
In addition to displaying your stint time and pit lane timing information, VBOX Pit Lane Timer uses an array of 6 LEDs to prompt you when to speed up, slow down and leave the pit box.
Information such as speed, time, and position is logged at 25 times per second and is stored on an SD card for you to examine later with our free Circuit Tools analysis software.
VBOX Pit Lane Timers provide instant feedback to help optimise the time spent in the pit lane and to avoid pit stop penalties.
Once the pit lane entry point is crossed, the Pit Lane Timer will display the current speed until the car stops in the pit box. It will then start a countdown to when it is time to leave the pit box.
In addition to displaying your stint time and pit lane timing information, VBOX Pit Lane Timer uses an array of 6 LEDs to prompt you when to speed up, slow down and leave the pit box.
Information such as speed, time, and position is logged at 25 times per second and is stored on an SD card for you to examine later with our free Circuit Tools analysis software.
- 25 Hz data logging to SD card
- Helps to avoid pit stop penalties
- Minimises the time spent in the pits
- Prompts when to leave the pit box and warns if you are likely to cross the line too early
- Intuitive to use
- Motorsport Standard Lemo connectors
- Low power consumption: <2W
- Multiple Mounting methods including standard 1/4-20 UNC threaded hole
- Free lifetime customer support

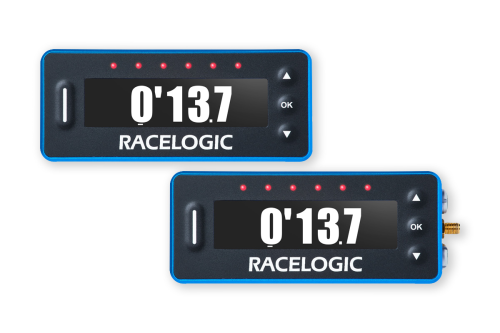

VBOX Pit Lane Timer with Side Connectors
VBOX Pit Lane Timer with Rear Connectors

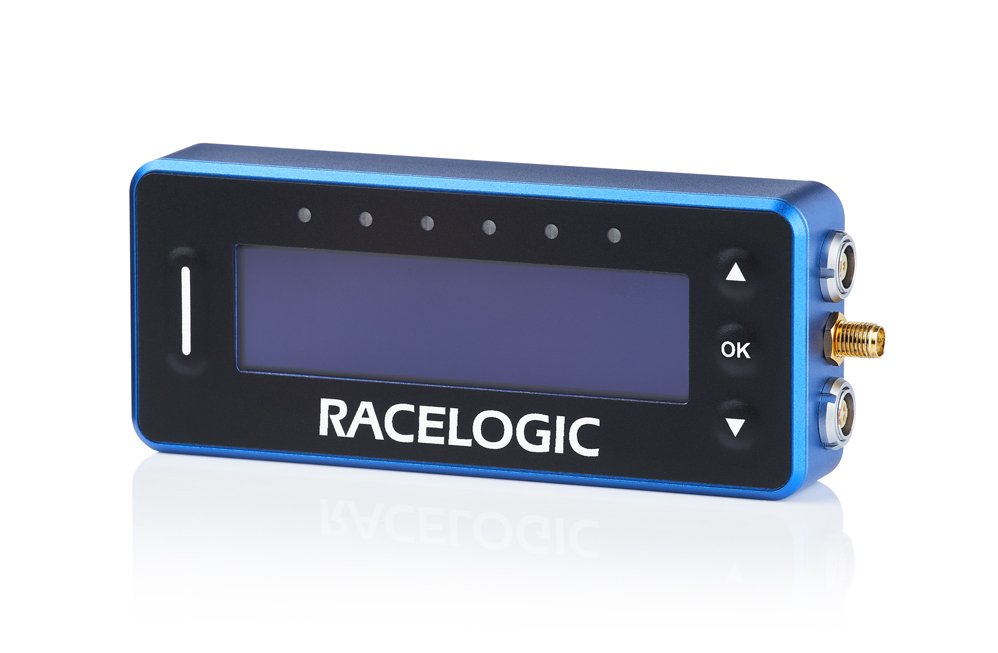

The RLVBPIT-S uses side-mounted connectors, making cable access easier when the unit is frequently moved between vehicles or installations.

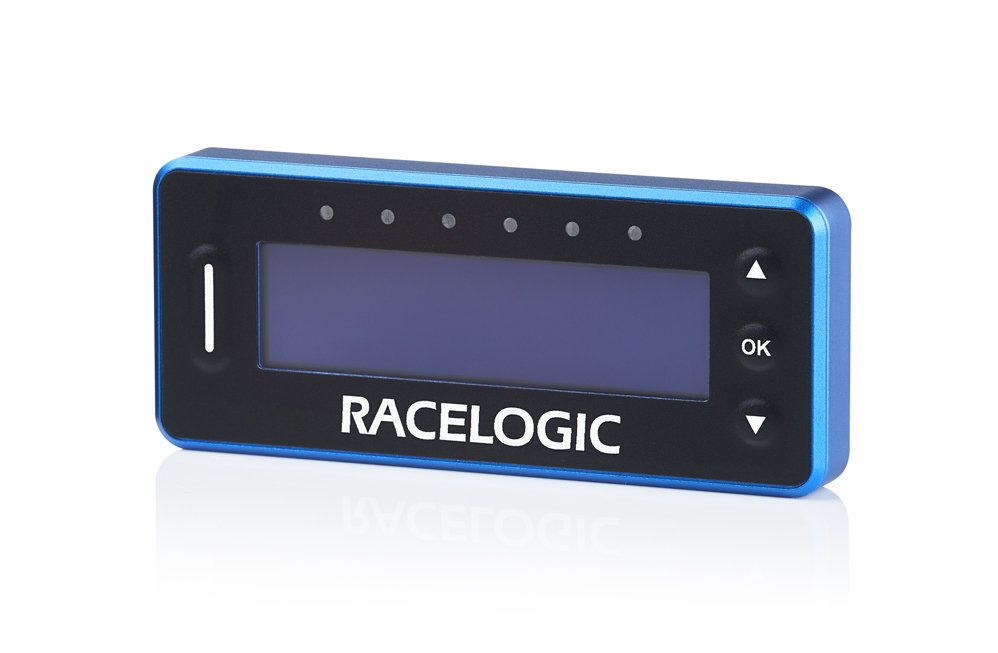

The RLVBPIT-R features rear-mounted connectors, allowing for a slimmer installation profile that is better suited to fixed or permanent installations.
Is your VBOX Pit Lane Timer version not mentioned above?
If you have an older version of the VBOX Pit Lane Timer, refer to the Legacy Product section for more information.
The following documentation is available for this product. These pages include setup instructions, user guidance, technical reference information, and additional resources to help you install, configure, and use the product correctly. Use the links below to access the relevant documentation for your requirements.
