Video Data Loggers
VBOX Video HD2
User Guide
Cable Identification

Cable Identification

Updated on Apr 30, 2026

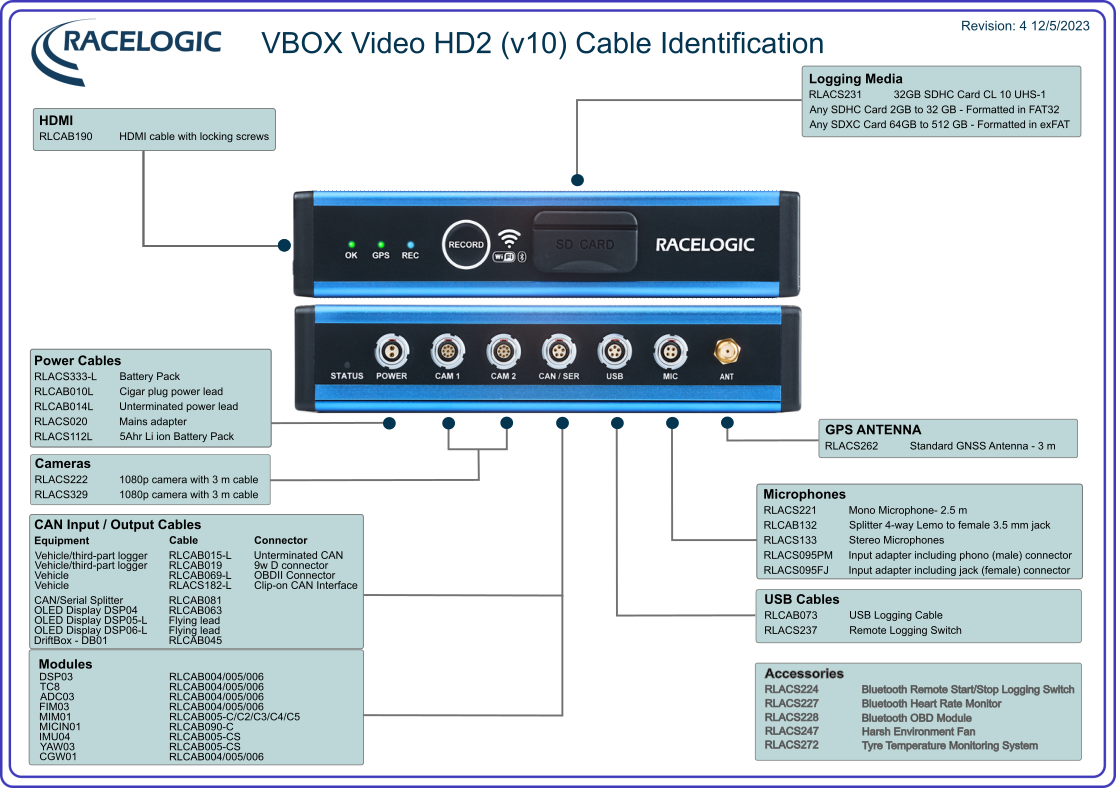

Cable identification drawing_v10

HDMI Output Configuration
