This page contains an introduction and overview of the Racelogic VBOX Mini Pit Lane Timer and what you need to know before you start using one.
This page contains an introduction and overview of the Racelogic VBOX Mini Pit Lane Timer and what you need to know before you start using one.
Register your Racelogic product so that we can provide you with notifications about the latest software and firmware releases, and offer technical support.
When you purchase a VBOX Mini Pit Lane Timer, you will find the following items when you open the box:
| Product Code | Quantity | Description |
|---|---|---|
| VBLAPMINI-V1 | 1 | VBOX Mini Pit Lane Timer Unit |
| RLACS262 | 1 | External GPS/GLONASS Low Profile Antenna |
| RLACS287 | 1 | Lightweight Suction Mount |
| RLCAB165 | 1 | 6-way Hirose to 12 V Cigar Lighter Power Cable (2 m) |
| RLACS313 | 1 | 8 GB SD Ultima Pro Memory Card |
The VBOX Mini Pit Lane Timer can record to MMC, SD, SDHC and SDXC media cards formatted in a FAT or FAT32 format.
SDXC cards will be formatted as exFAT by default, a format type not supported by VBOX LapTimer. You can still use them, as long as you reformat them to FAT32 first. There are various free third-party applications available online to format SDXC cards.
If you do not have an SD card inserted in your VBOX Mini Pit Lane Timer, it will show a "No Media" message while the vehicle is moving at speeds of 5 mph or less. This makes it easier for you to make sure that you have an SD card inserted before you start your logging.
If the SD card you use has less than 10 MB of space available you will see a warning symbol flashing periodically on the screen indicating the amount of memory available.

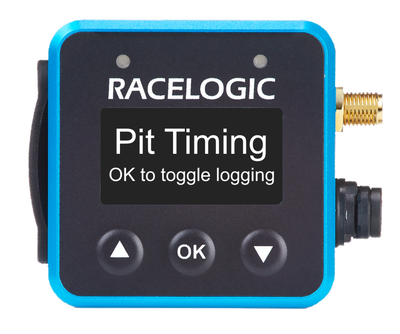

Depending on which mode is currently active on the screen, the function of the OK button will change. The splash screen shown when scrolling through the menu describes the function of the OK button in each mode.
You can also find the complete list below:
| Mode | Function |
|---|---|
| Pit Timing | Start and stop logging (creation of pit time .txt file) |
| Speed | No function |
| Menu | Access the Menu |
