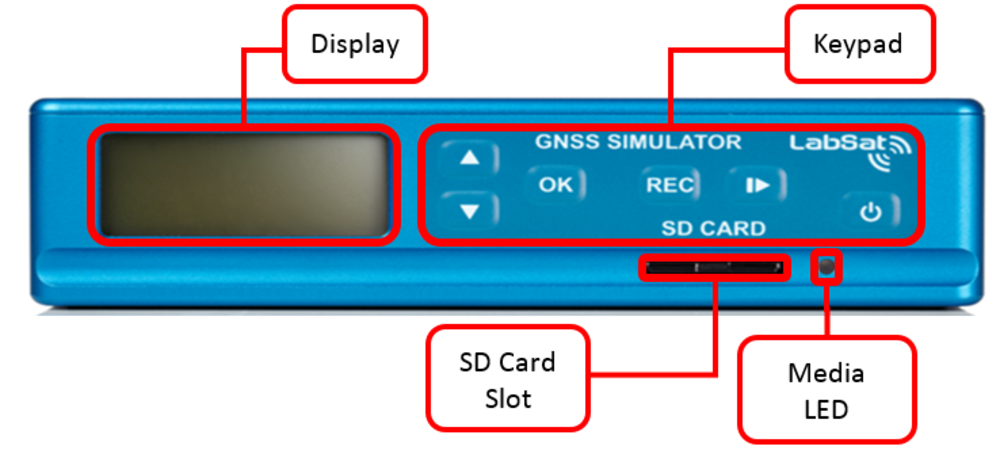

LabSat 3 has been designed to be portable and simple to use allowing virtually anyone to gather field test signals without in depth training. Recording GNSS signals is as simple as positioning the antenna and pressing one button. The sunlight-readable graphic display gives instant feedback of record status and can show live histogram data to verify satellites in view during recording. Back at the Lab, recorded signals can be replayed at the push of a button for repeatable, reliable testing.

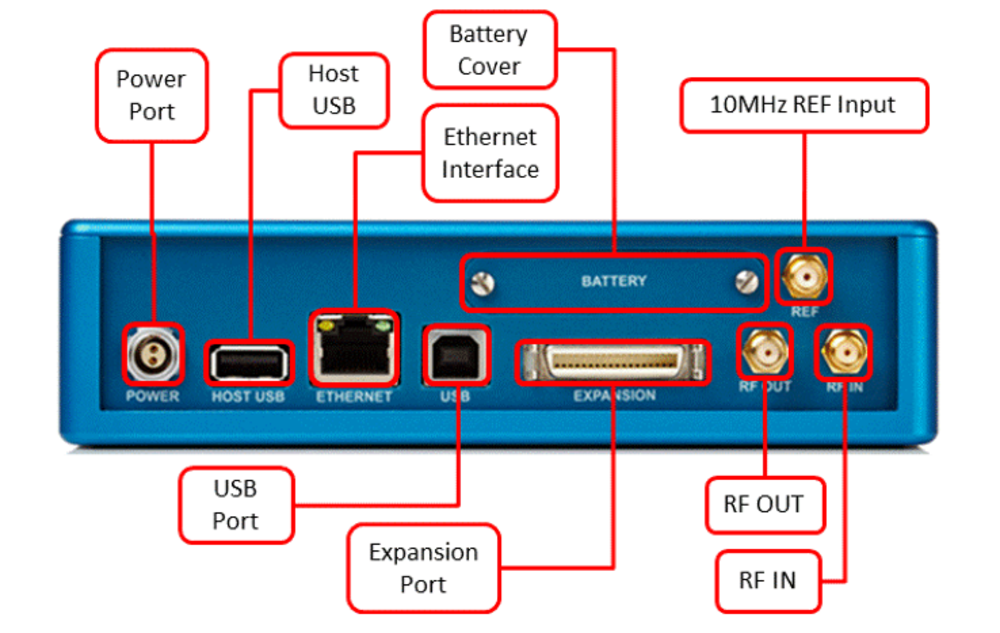

| Name | Type | Description |
|---|---|---|
| POWER | 2 pin LEMO | 8 to 30 VDC Power Supply input |
| HOST USB | USB ‘A’ | Connection of USB Storage devices |
| ETHERNET | RJ45 | Remote access and control |
| USB | USB ‘B’ | NMEA data output |
| RF OUT | SMA | Output RF signal |
| RF IN | SMA | Input RF signal (RP variants only) |
| REF | SMA | 10MHz Reference Clock Input |
| Expansion | 36 Way MDR | 1PPS, Digital I/O*, CAN*, RS232* |
NOTE
Digital I/O, CAN and RS232 compatibility is system-dependent and available as optional capabilities.
