07 - VBOX Video Performance Tests - Windows


Adding performance tests

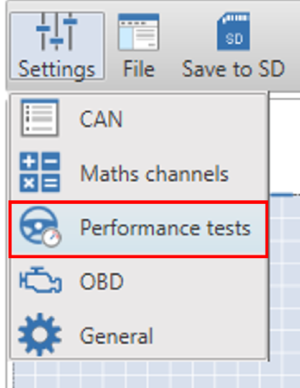

To add any of the eight available tests, navigate to the performance tests setup screen. This area can be accessed by selecting the ‘Settings’ button in the top left menu bar.


performance_tests (1).png


To return to the scene designer, either use the ‘Settings’ button again, or press the ‘X’ in the top right corner of the general settings area.


Performance Test Overview.png


There are eight standard performance tests which can be selected within the scene designer. To add a test, click on the 'Create new' button. This will add the tests one by one in the order shown below:


Performance Tests Add.png


Pressing the ‘X’ next to a test will remove that test from the scene.

These tests can be assigned to any text elements. To add a performance test into a scene, click the ‘Text’ icon shown below.


1 (1).png


This will add a new text element into the main view window.


2 (1).png


Within the right hand panel, the parameter settings can be set to ‘Performance tests’ and then the desired test chosen.


3 (1).png


Performance Test results will show as ‘Time taken’ by default. The following format options can be selected.


4 (1).png


Once the parameter has been set as desired, the performance test will actively display on the video overlay.

Note that all on-screen performance tests will start in a stopwatch-style counter when the start conditions are met, and will freeze holding results on screen as soon as test end conditions are achieved.

Tests will be reset and started again after a completed test has been done when the start conditions for the test are met again.

Editing performance tests

To edit a performance test, select the test from the left-hand list. The settings for this test will then be shown in the main view window.

There are a number of standard tests which can be easily selected using the ‘select standard test’ drop-down list.


7 (1).png


When a new test is selected, press the 'OK' button to save the changes. This will update the name shown in the left hand list, and will then appear for selection within the scene designer screen.

User defined performance tests – including speed to distance tests

Tick the ‘User defined’ box to access all performance test settings.


8 (1).png


Start of test settings

Here, the start speed for the test can be set. If the ‘one foot rollout’ box is marked, this will fix the start speed to zero.

For more information about one foot rollout, click here.



9 (1).png

End of test settings

This area allows the test end conditions to be defined. Either set an end speed, or distance value.

Marking the ‘beep at end test’ box will cause the HD2 to sound a single tone upon test completion.


10 (1).png


Mid-Speed settings

Enabling this setting allows a mid-speed to be added to the test – for example ‘0 – 100 – 0’ tests.

When this box is marked, a speed value area will appear as shown below.


11 (1).png


Note: Mid-speed is disabled when running speed to distance tests.

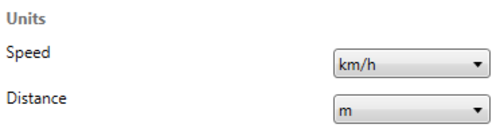

Units

Use these two drop down boxes to set the units of measurement used in the tests.


12 (1).png

Speed – select from:

  • km/h (default)
  • mph
  • kts
  • m/s
  • ft/s

Distance – select from:

  • m (default)
  • ft
  • km
  • mi
  • nmi
Saving test changes

Press the 'OK' button to save any changes. This will update the name shown in the left hand list, and will then appear for selection within the scene designer screen.

Note that performance tests are saved within individual scene files.
