CAN Hub - PIN OUTS

Connector 1 - POWER  (Lemo 2 PIN)



2 pin Lemo.png


PIN I/O Function
1 I/O Power
2 I/O Ground
Chassis   Ground

Connector 2 - CAN 1  (Lemo 5 PIN)

5 PIN Lemo.png


PIN I/O Function
1 - NC
2 - NC
3 I/O CAN High
4 I/O CAN Low
5 O Power


Connector 3 - CAN 2  (Lemo 5 PIN)

5 PIN Lemo.png

PIN I/O Function
1 - NC
2 - NC
3 I/O CAN High
4 I/O CAN Low
5 O Power


Connector 4 - DGPS SERIAL (Lemo 5 PIN)

5 PIN Lemo.png

PIN I/O Function
1 O Tx-RS232
2 I Rx-RS232
3 - NC
4 - NC
5 O Power


Connector 5 - VBOX CAN (Lemo 5 PIN)

5 PIN Lemo.png

PIN I/O Function
1 O Tx-RS232
2 I Rx-RS232
3 I/O CAN High
4 I/O CAN Low
5 O Power


Connector 6 - VBOX SER (Lemo 5 PIN)

5 PIN Lemo.png

PIN I/O Function
1 O Tx-RS232
2 I Rx-RS232
3 I/O CAN High
4 I/O CAN Low
5 O Power


Connector 7 - SER SERIAL (Lemo 5 PIN)

5 PIN Lemo.png

PIN I/O Function
1 O Tx-RS232
2 I Rx-RS232
3 I/O CAN High
4 I/O CAN Low
5 O Power


Connector 8 - VCI 1 (Lemo 5 PIN)

5 PIN Lemo.png

PIN I/O Function
1 O Tx-RS232
2 I Rx-RS232
3 I/O CAN High
4 I/O CAN Low
5 O Power


Connector 9 - VCI 2 (Lemo 5 PIN)

5 PIN Lemo.png

PIN I/O Function
1 - NC
2 - NC
3 I/O CAN High
4 I/O CAN Low
5 O Power


Connector 10 - MFD (Lemo 5 PIN)

5 PIN Lemo.png

PIN I/O Function
1 O Tx-RS232
2 I Rx-RS232
3 I/O CAN High
4 I/O CAN Low
5 O Power

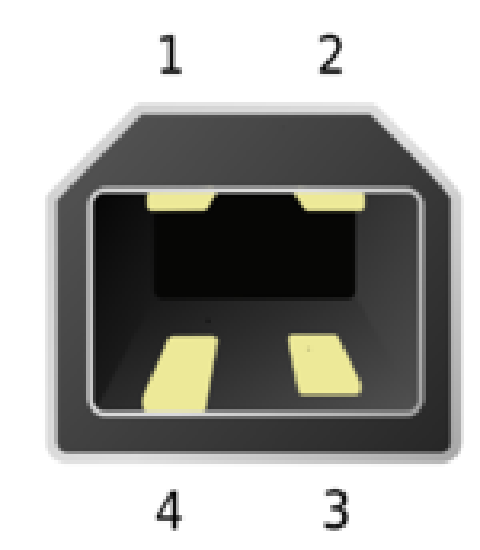

Connector 11 - USB (USB B)

PIN I/O Function
1 I Power
2 I Data -
3 I/O Data +
4 I/O Ground
Chassis I Ground
